Three Channel ECG Machine

Share on:

Offer end in:

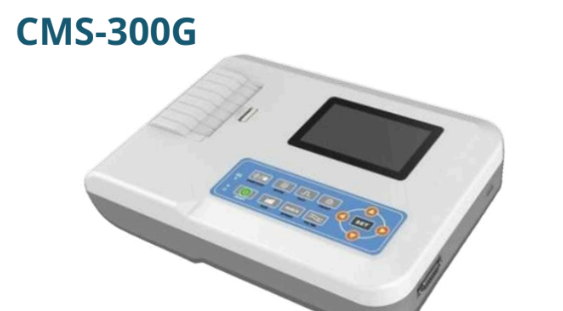

The CMS-300G ECG Machine is a three-channel diagnostic device designed for accurate and clear ECG waveform recording. It supports 3/6/12-lead ECG monitoring, multiple print formats, and comes with a built-in memory for up to 1000 cases, making it reliable and efficient for clinical use.

In Stock

Description Specification

The CONTEC CMS-300G Three Channel ECG Machine is a high-precision cardiac diagnostic system engineered for hospitals, clinics, and diagnostic centers requiring dependable and detailed ECG monitoring. Its advanced floating input system with defibrillation protection ensures maximum patient safety while maintaining signal accuracy, even in intensive care or emergency settings. Designed for efficient clinical workflow, it delivers accurate and stable ECG readings with low noise interference, making it an essential tool for professional cardiology use.The device offers exceptional performance with a sampling rate of 1000 Hz and a frequency response of 0.05 Hz–150 Hz, enabling clear waveform acquisition across all 12 leads. It supports an extensive range of printing modes, including manual, auto 4×3, auto 3×4+1, auto 2×6+1, auto 2×6, auto 3×2-1, auto 3×2, auto 1×12-1, auto 1×12, rhythm 4, rhythm 3, and rhythm 2, providing clinicians with flexibility for various diagnostic requirements. The large display conveniently presents 3/6/12-lead ECG print modes, sensitivity settings, paper speed, and filter status simultaneously, allowing for direct visual comparison and efficient analysis.

Built for high-volume clinical use, the CMS-300G includes a built-in memory capacity of up to 1000 cases, simplifying patient record management and long-term data storage. Its compact, low-noise design (≤15 µVp-p) ensures a quiet and stable operation, suitable for both hospital wards and diagnostic laboratories. Combining reliability, ease of use, and clinical precision, this three-channel ECG machine offers a powerful and cost-effective solution for modern cardiac care environments.

Specifications of Three Channel ECG Machine

Shipping Weight	3.00 kg
Shipping Dimensions	35 × 38 × 15 cm
Color	White with Blue Panel
Material	ABS Plastic & Medical-Grade Electronics
Utility	3-channel ECG recording, waveform printing & patient data storage
Channels	3-channel ECG with 12-lead simultaneous acquisition
Sampling Rate	1000 Hz
Frequency Response	0.05 Hz – 150 Hz
