RECOVERY BED MECHANICAL FIXED HEIGHT (ABS PANELS)

Share on:

Offer end in:

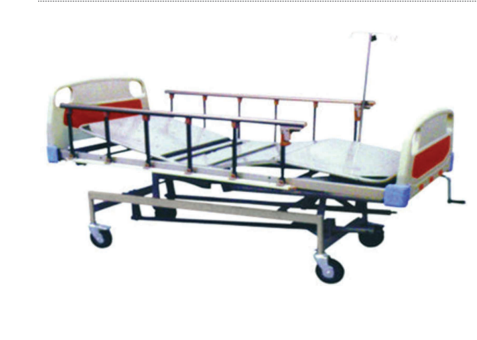

The Recovery Bed Mechanical (Model SSPL505) is a sturdy fixed-height hospital bed equipped with ABS moulded panels, collapsible side railings, and a mechanical crank system. Designed for patient recovery and hospital ward use, it ensures comfort, safety, and durability.

In Stock

Description Specification

The SSPL505 Recovery Bed Mechanical is built with a strong rectangular MS tube framework and a 4-section top made of oval/round perforated MS CRC sheet. Both head and foot ends are fitted with ABS moulded panels for durability and easy cleaning. For patient safety, the bed features collapsible side railings made of stainless steel.The bed is equipped with a stainless-steel telescopic IV rod with two location points (expandable to four on request) and mounted on 5-inch castors (two with brakes) for mobility and stability. Rubber buffers at corners enhance impact protection.Its dimensions measure 2.10 m (L) × 0.90 m (W) × 0.60–0.80 m (H). The bed has a fixed height but allows patient positioning through a smooth mechanical crank system with foldable handles, offering backrest elevation, knee rest elevation, and Trendelenburg/reverse Trendelenburg adjustments.Finished in epoxy powder coating, the bed provides a hygienic, long-lasting surface. The colour scheme includes a white epoxy-coated frame, ABS head and foot panels in white with wood-finish inserts, stainless steel collapsible railings, and black corner buffers.

Optional accessories include a four-section mattress (ASC-620-C) for enhanced patient comfort.

Specifications of RECOVERY BED MECHANICAL FIXED HEIGHT (ABS PANELS)

Shipping Weight	85 kg
Shipping Dimensions	215 × 95 × 60 cm
Colour	White epoxy-coated frame, ABS moulded head & foot panels with wooden inserts, SS side railings, black rubber corner buffers
Frame Material	Rectangular MS Tube
Top Material	Perforated MS CRC Sheet (4-section)
Panel Material	ABS Moulded (head & foot)
Side Railings	Stainless Steel Collapsible
IV Rod	Stainless Steel, telescopic (2 standard, 4 optional)
Castors	5” diameter (2 with brakes)
Mechanism	Mechanical crank with foldable handles
