Twelve Channel ECG Machine
Offer end in:

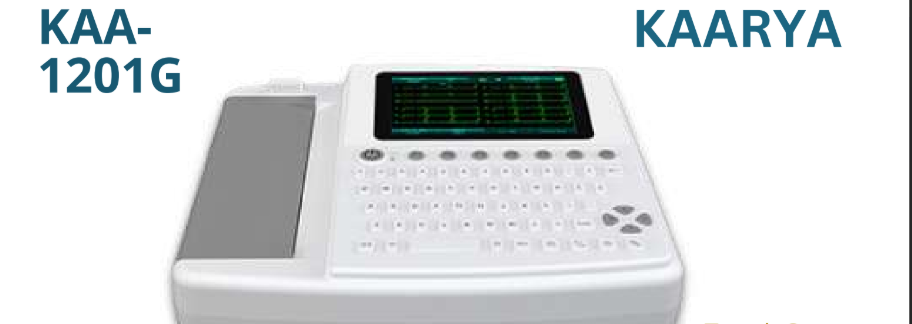

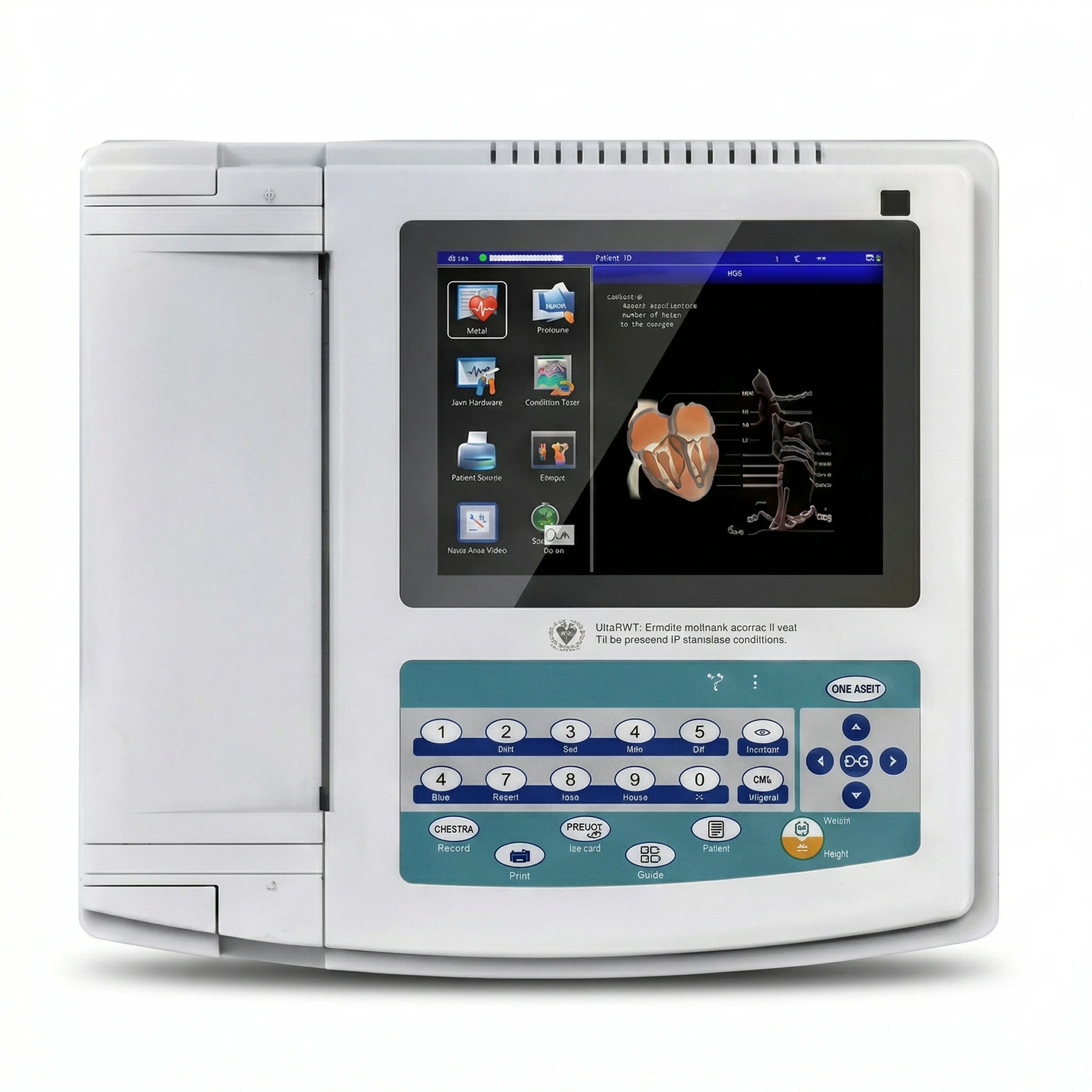

The KAA-1201G is a 12-channel ECG machine featuring a 7-inch high-resolution color touchscreen, automatic measurement & interpretation, and USB/SD card support for data storage. With advanced filters, low noise levels, and built-in rechargeable lithium battery, it ensures accurate, reliable, and uninterrupted cardiac monitoring in hospitals and diagnostic centers.
In Stock
Description
The KAA-1201G Twelve Channel ECG Machine is designed to deliver precise and efficient cardiac diagnostics in clinical and hospital environments. It comes with a 7-inch high-resolution color touchscreen that provides clear waveform visualization and easy operation. Equipped with a standard 12-lead system and simultaneous 12-lead acquisition, it ensures highly accurate ECG recordings for a comprehensive cardiac assessment.The device supports automatic ECG measurement and interpretation, significantly reducing the workload of healthcare professionals. It incorporates complete digital filters that resist baseline drift, AC interference, and EMG interference, providing clean and stable ECG signals. The integrated thermal printing system allows for fast documentation with adjustable paper speeds of 12.5, 25, and 50 mm/s and supports a 200 mm × 20 m paper roll.With a measurement range of ±5 mVpp, frequency response of 0.05–150 Hz (±3 dB), and sensitivity options of 2.5, 5, 10, and 20 mm/mV (±5%), the KAA-1201G ensures high-accuracy results. It operates with a noise level ≤15 µVp-p, making it ideal for both routine and critical patient monitoring. The system also provides a sample rate of 1000 sps/channel, guaranteeing detailed and reliable data acquisition.For storage and connectivity, it supports USB flash drives and micro SD cards with easy software upgrades via USB/SD. The machine runs on AC 200–240V, 50/60Hz, 30VA–100VA, and is equipped with a 14.8V / 2200mAh built-in rechargeable lithium battery, ensuring uninterrupted operation during power outages.
Compact, portable, and efficient, the KAA-1201G is perfectly suited for use in hospitals, ICUs, and diagnostic centers, providing reliable performance and ease of use.
Specifications of Twelve Channel ECG Machine
| Shipping Weight | 6.50 kg |
| Shipping Dimensions | 42 × 32 × 18 cm |
| Colour | White with Grey Accents |
| Display | 7-inch high-resolution color touchscreen |
| Lead System | Standard 12-lead, simultaneous 12-lead acquisition |
| Paper Speed | 12.5 mm/s, 25 mm/s, 50 mm/s |
