Description

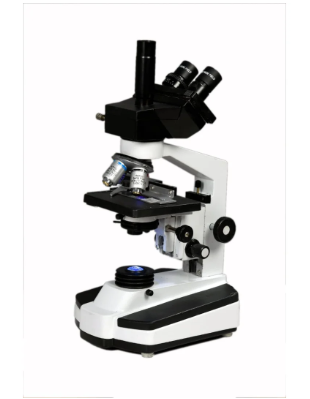

The Trinocular Microscope is a precision laboratory instrument designed for routine diagnostics, academic teaching, and research applications, especially where camera or digital imaging attachment is required. Its robust construction and reliable optical performance make it suitable for medical laboratories, research institutes, colleges, and quality-control labs.
The microscope features a strong aluminium die-cast body, ensuring durability and vibration-free operation. The trinocular observation head, rotatable through 360°, allows comfortable visual observation while simultaneously supporting camera or imaging systems.
A co-axial mechanical stage provides smooth, frictionless, and jerk-free slide movement, ensuring precise specimen positioning. The movable condenser (NA 1.2), equipped with an iris diaphragm and filter holder, is operated via a rack-and-pinion mechanism for optimal light control and contrast.
The microscope is fitted with separate coarse and fine focusing adjustments, enabling accurate focusing even at higher magnifications. Optical performance is delivered through achromatic objectives (5X, 10X, 45X SL, and 100X SL oil immersion) paired with WF 10X eyepieces, providing clear and sharp images.
A built-in safety adjustment stopper prevents accidental contact between objectives and slides, protecting both samples and optics. Variable illumination control allows users to adjust brightness according to specimen requirements, ensuring comfortable and precise observation.
Specifications of Trinocular Microscope
| Shipping Weight | 9 kg |
| Shipping Dimensions | 55 × 35 × 45 cm |
| Product Type | Trinocular Microscope |
| Body Material | Aluminium die-cast |
| Observation Head | Trinocular, 360° rotatable |
| Stage Type | Co-axial mechanical stage |
| Condenser | Movable NA 1.2 with iris diaphragm |
| CFocusing System | Separate coarse & fine adjustment |
| Objectives | Achromatic 5X, 10X, 45X (SL), 100X oil (SL) |
| Eyepieces | WF 10X (paired) |
