Description

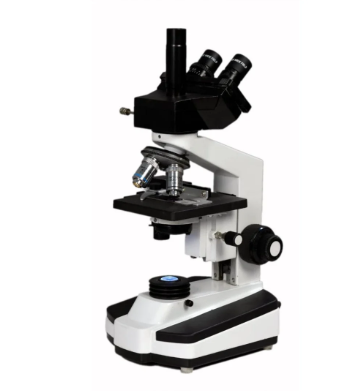

The Trinocular Coaxial Microscope is a high-precision optical instrument designed for laboratory diagnostics, academic research, teaching, and imaging applications where visual observation and camera attachment are required simultaneously. Its sturdy construction and smooth mechanical operation make it ideal for medical laboratories, colleges, research institutes, and quality-control environments.
The microscope is built with a robust aluminium die-cast body, ensuring vibration-free stability and long service life. It features a trinocular observation head, fully rotatable through 360°, allowing comfortable viewing and easy integration of imaging devices such as microscope cameras.
A co-axial mechanical stage provides smooth, frictionless, and jerk-free slide movement, enabling precise specimen positioning. The movable condenser (NA 1.2) with iris diaphragm and filter holder, operated via a rack-and-pinion mechanism, ensures optimal illumination and contrast control.
The microscope is equipped with separate coarse and fine focusing controls, allowing accurate focusing even at higher magnifications. Optical performance is delivered through achromatic objectives (5X, 10X, 45X SL, and 100X SL oil immersion) paired with WF 10X eyepieces, producing clear, sharp, and high-contrast images.
A built-in adjustment down-stopper safety device prevents accidental damage to slides and objectives. Variable illumination control allows users to adjust brightness according to specimen requirements, ensuring comfortable and precise observation.
Specifications of Trinocular Coaxial Microscope
| Shipping Weight | 9 kg |
| Shipping Dimensions | 55 × 35 × 45 cm |
| Product Type | Trinocular Coaxial Microscope |
| Body Construction | Aluminium die-cast |
| Observation Head | Trinocular, 360° rotatable |
| Condenser: | Movable NA 1.2 with iris diaphragm |
| Focusing System | Separate coarse & fine adjustment |
| Objectives | Achromatic 5X, 10X, 45X (SL), 100X Oil (SL) |
| Eyepieces | WF 10X (paired)Trinocular Coaxial Microscope |
