Three Channel ECG Machine

Share on:

Offer end in:

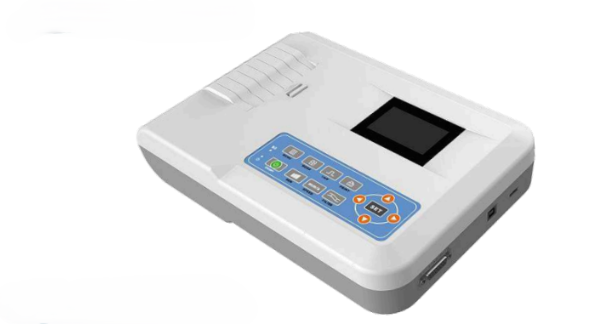

The CONTEC CMS-300GA is a three-channel ECG machine designed for accurate, multi-lead cardiac monitoring. It supports 12-lead ECG signal collection, automatic measurement and diagnosis, and high-quality waveform printing with its built-in thermal printer. Equipped with multi-language interface, case storage, and digital filters, it ensures reliable performance for hospitals, clinics, and diagnostic centers.

In Stock

Description Specification

The CONTEC CMS-300GA Three Channel ECG Machine is a technologically advanced diagnostic system designed for accurate, efficient, and comprehensive cardiac monitoring. It supports the simultaneous acquisition of 12-lead ECG signals, providing clinicians with detailed insight into cardiac function for adults, pediatrics, and neonates. Equipped with advanced digital signal processing, it ensures precise waveform capture and minimizes artifacts, delivering reliable diagnostic data in clinical and emergency settings. Its user-friendly interface and multiple operation modes make it an ideal choice for hospitals, diagnostic centers, and mobile healthcare units.This ECG machine features multiple printing modes such as manual, auto 4×3, auto 3×4+1, and auto 2×6+1, with adjustable waveform lengths and timed printing functions for versatile reporting. The inclusion of digital filters—covering power frequency, baseline drift, and EMG interference—ensures high-fidelity signal quality with clear, stable ECG traces. The CMS-300GA also incorporates automatic measurement and analysis algorithms, offering key diagnostic outputs such as HR, PR interval, QRS duration, Q-T interval, Q-Tc, P-R-T axes, and R(V5)/S(V1) values. These automatic interpretations streamline workflow and reduce manual analysis time for clinicians.

For efficient data management, the device comes with built-in memory capable of storing up to 15 ECG cases, expandable to 100 cases via SD card. It supports PC connectivity via USB 2.0 for real-time ECG data transfer, review, and advanced analysis on compatible software. The multi-language interface (Chinese/English) enhances accessibility for international users. Powered by AC/DC with a rechargeable lithium battery, it offers up to 4 hours of standby operation in DC mode, making it exceptionally portable and dependable for bedside, field, or ambulance use.

Specifications of Three Channel ECG Machine

Shipping Weight	3.00 kg
Shipping Dimensions	35 × 28 × 15 cm
Color	White with Blue Panel
Material	ABS Plastic & Medical-Grade Components
Utility	3-channel ECG recording, printing & diagnostic analysis
Channels	3-channel ECG with 12-lead simultaneous acquisition
Display	High-clarity LCD with waveform and parameter visualization
Printing Modes	Manual, Auto 4×3, Auto 3×4+1, Auto 2×6+1, timed print options
Filters	Power frequency, baseline drift, and EMG filters
