Single Channel ECG Machine

Share on:

Offer end in:

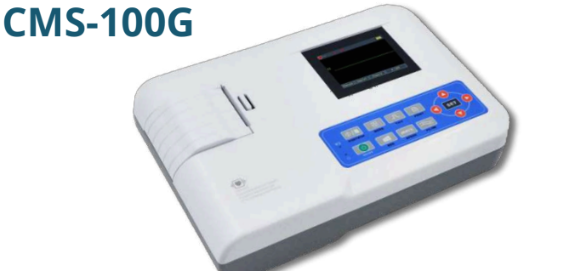

The CONTEC CMS-100G is a single-channel ECG machine designed for efficient and reliable heart monitoring. It provides high-resolution waveform display and thermal printing, with advanced features such as digital filters, floating input circuits, and rechargeable battery backup, making it ideal for hospitals, clinics, and diagnostic centers.

In Stock

Description Specification

The CONTEC CMS-100G Single Channel ECG Machine is a compact and portable diagnostic system designed for accurate and efficient cardiac monitoring in hospitals, clinics, and mobile medical setups. Featuring a large LCD display, it provides clear visualization of ECG waveforms and numerical data, enhancing readability during examinations. Its built-in high-resolution thermal printing array ensures crisp, detailed ECG printouts with fast output, making it ideal for both bedside and field diagnostics. With an intuitive user interface and lightweight construction, it offers convenience and precision in every clinical environment.Built for reliability, the CMS-100G incorporates advanced digital signal processing technology with a sampling rate of 1000 Hz, 12-bit A/D conversion, and a frequency response up to 150 Hz, ensuring precise waveform capture and analysis. The system includes digital filters (≥60 dB and ≥100 dB add filter) that effectively eliminate baseline drift and interference without compromising signal integrity. It supports a 10-lead input system with multiple sensitivity selections (5, 10, 20 mm/mV), providing flexibility for different diagnostic needs. The floating input circuit with defibrillation protection ensures patient safety and compliance with IEC medical standards, making it a dependable solution for cardiac diagnostics.

For added practicality, the machine includes a rechargeable battery capable of performing over 50 patient examinations per charge, ensuring uninterrupted operation during emergencies or mobile use. The recording range of 50 mm (W) × 20 m (L) accommodates detailed ECG traces, and its multilingual software interface (GB, FR, IT, ES, DE, TR) enhances usability for clinicians worldwide. Compact, precise, and globally compatible, the CMS-100G ECG Machine is an excellent choice for healthcare professionals requiring portability without compromising diagnostic accuracy.

Specifications of Single Channel ECG Machine

Shipping Weight	2.00 kg
Shipping Dimensions	30 × 24 × 14 cm
Color	White with Blue Panel
Material	ABS Plastic & Medical-Grade Components
Noise Level	≤15 μVp-p
Display	Large LCD for waveform and data visualization
Printing System	High-resolution thermal array with fast output
Sampling Rate	1000 Hz
