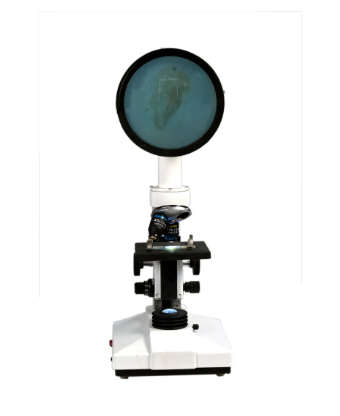

Projection Microscope
Offer end in:
A sturdy projection microscope with a 6-inch rotating glass screen, built-in illumination, and achromatic optics—perfect for classroom and group demonstrations.
Read More...
In Stock
Description
The Projection Microscope is specially designed for group viewing and classroom demonstrations, making it an ideal teaching aid for schools, colleges, and training institutions. Its robust and well-balanced microscope body allows instructors to project enlarged images of specimens clearly, enabling multiple students to observe simultaneously without individual eyepiece viewing.
This microscope features a monocular fixed straight tube body fitted with a large 150 mm (6”) diameter glass projection screen, which can be rotated 360 degrees around the microscope tube for flexible viewing angles. The sturdy base houses an inbuilt 12V, 21W illumination lamp with transformer, ensuring bright and uniform projection. Slots are provided for natural cooling of the illuminator, enhancing operational safety and lamp life.
For precise focusing, the microscope is equipped with highly sensitive coarse and fine movement knobs, allowing smooth and accurate adjustments. A triple revolving nosepiece with accurate centering and positive click stops enables quick and reliable objective changes. The fixed square stage (120 × 120 mm) provides stable specimen placement during demonstrations.
The microscope is supplied complete with achromatic objectives (10X and 45X SL) and a 10X Huygenian eyepiece, delivering clear and sharp projected images. It is packed securely in a thermocol box and includes essential accessories such as a vinyl dust cover and cleaning duster.
An optional detachable mechanical stage with X–Y cross movement (50 × 75 mm) and fully graduated vernier scale is available for enhanced specimen control.
This microscope features a monocular fixed straight tube body fitted with a large 150 mm (6”) diameter glass projection screen, which can be rotated 360 degrees around the microscope tube for flexible viewing angles. The sturdy base houses an inbuilt 12V, 21W illumination lamp with transformer, ensuring bright and uniform projection. Slots are provided for natural cooling of the illuminator, enhancing operational safety and lamp life.
For precise focusing, the microscope is equipped with highly sensitive coarse and fine movement knobs, allowing smooth and accurate adjustments. A triple revolving nosepiece with accurate centering and positive click stops enables quick and reliable objective changes. The fixed square stage (120 × 120 mm) provides stable specimen placement during demonstrations.
The microscope is supplied complete with achromatic objectives (10X and 45X SL) and a 10X Huygenian eyepiece, delivering clear and sharp projected images. It is packed securely in a thermocol box and includes essential accessories such as a vinyl dust cover and cleaning duster.
An optional detachable mechanical stage with X–Y cross movement (50 × 75 mm) and fully graduated vernier scale is available for enhanced specimen control.
Specifications of Projection Microscope
| Shipping Weight | 10 kg |
| Shipping Dimensions | 60 × 30 × 35 cm |
| Product Type | Projection Microscope |
| Observation Head | Monocular, fixed straight tube |
| Projection Screen | 150 mm (6”) glass screen, 360° rotatable |
| Illumination | Inbuilt 12V / 21W lamp with transformer |
| Nosepiece | Triple revolving with positive click stops |
| Objectives Supplied | Achromatic 10X & 45X SL |
| Eyepiece | 10X Huygenian |
