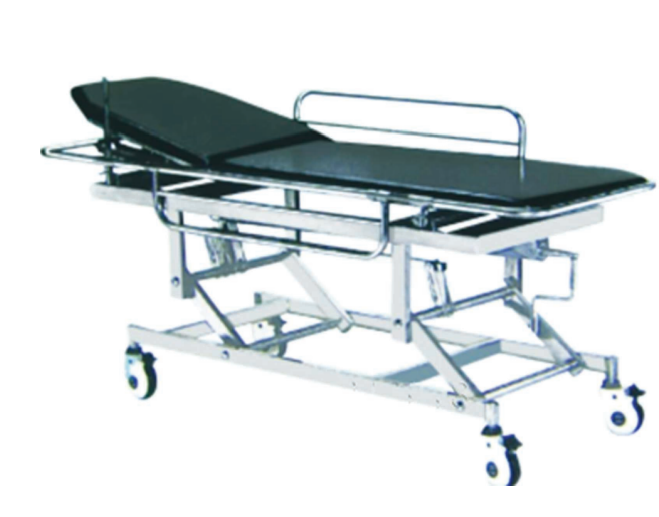

PATIENT TROLLEY (HI-LOW) MECHANICAL

Share on:

Offer end in:

A robust and versatile mechanical patient trolley designed for safe and efficient transport. It features a manual hi-low adjustment, a two-section top with a head-raising ratchet system, and comprehensive safety railings.

In Stock

Description Specification

The Patient Trolley is a dependable and ergonomically designed transport system built to ensure safe, smooth, and efficient movement of patients within hospitals, clinics, and emergency facilities. Constructed with a strong M.S. tubular framework, this trolley offers excellent stability and load-bearing capacity, making it ideal for both short and long-distance patient transfers. Its two-section top is powder-coated for durability and easy cleaning, ensuring hygiene and long-lasting performance even under frequent use in clinical settings.A key specification of this model is the head-raise mechanism operated by a ratchet system, which allows effortless and secure adjustment of the patient’s head section. The height adjustment is controlled by a crank handle located at the foot end, enabling medical professionals to precisely raise or lower the trolley to a comfortable working level during examinations, procedures, or transfers. For enhanced patient safety, the trolley is equipped with side safety railings that prevent accidental falls and a stainless steel IV rod, providing convenient placement for intravenous support during transport or treatment.

The Patient Trolley is mounted on 5” diameter swivel castors (two with brakes) that ensure smooth, controlled mobility and secure stationary positioning when needed. Finished with a pre-treated and epoxy powder coating, the frame resists corrosion and wear, maintaining both function and appearance over time. Combining safety, durability, and maneuverability, this trolley is an indispensable asset for any medical facility focused on efficient patient care and comfort.

Specifications of PATIENT TROLLEY (HI-LOW) MECHANICAL

Shipping Weight	110 kg
Shipping Dimensions	198.12 × 60.96 × 80.00 cm
Frame Material	Mild Steel Tubular Construction
Top Section	Two-Section Powder Coated Surface
Head Adjustment	Ratchet Mechanism
Height Adjustment	Crank Handle (at Foot End)
Side Rails	Safety Side Railings for Patient Protection
IV Rod	Stainless Steel Telescopic Type
Castors	Four 5” Dia Swivel Castors (Two with Brakes)
