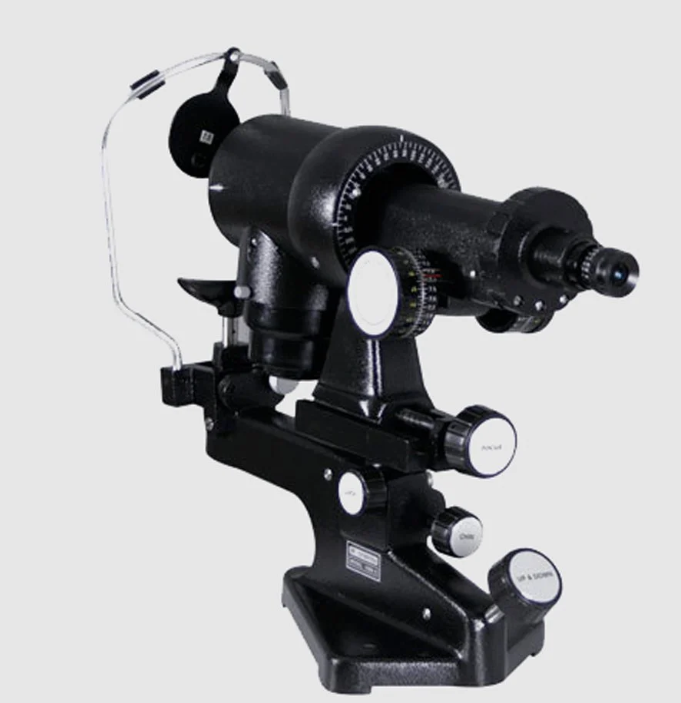

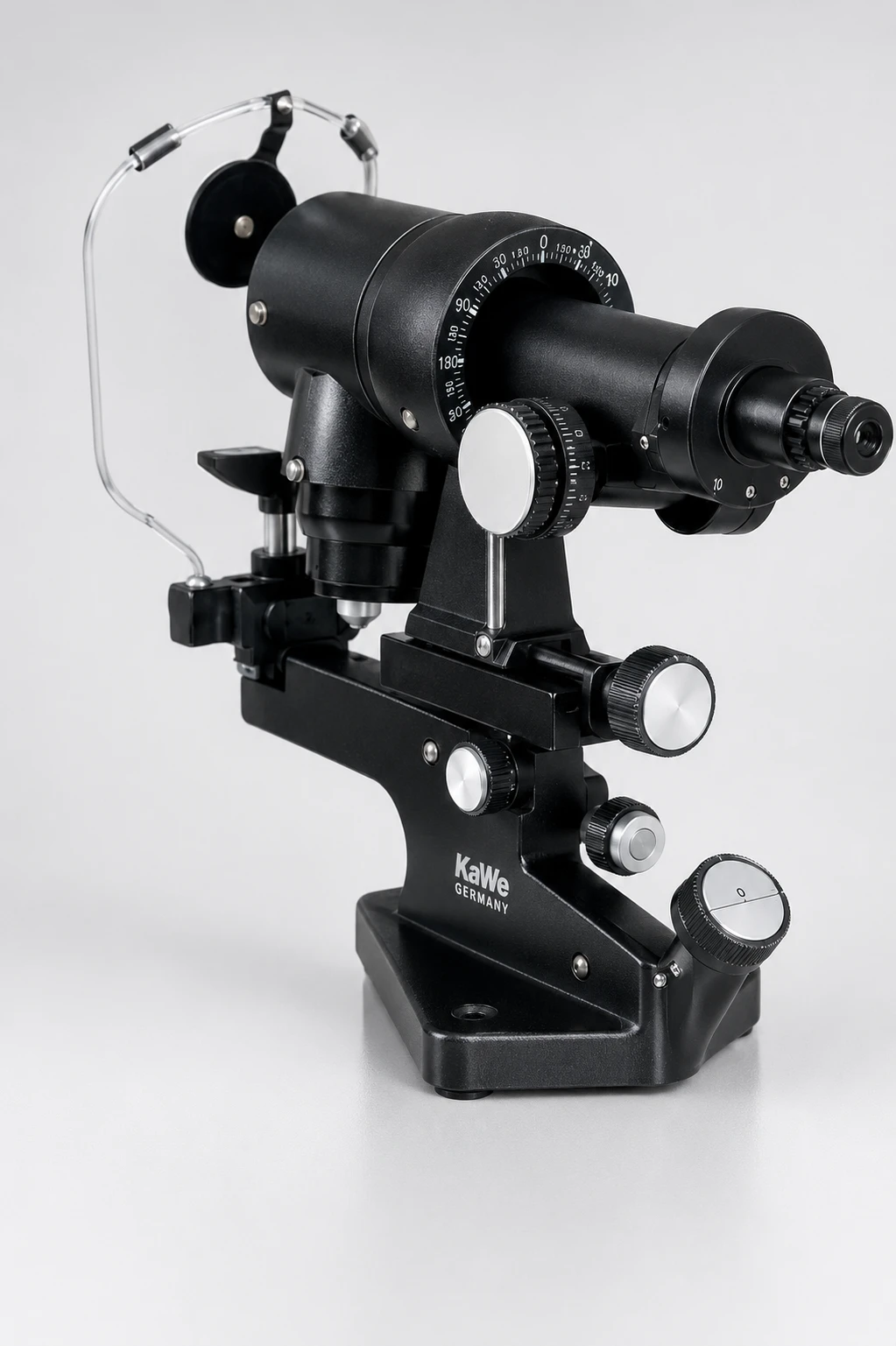

Manual Keratometer
Offer end in:
The Rai Medica Manual Keratometer is a precision ophthalmic instrument for measuring corneal curvature and astigmatism axis (0–180°) with utmost patient comfort. Equipped with a 15x eyepiece, coincidence focusing system, and achromatic optics, it provides highly accurate keratometric readings for clinical and hospital use.
In Stock
Description
The Rai Medica Manual Keratometer is designed for the accurate measurement of corneal radius curvature and astigmatic axis, making it an essential diagnostic tool for ophthalmologists and optometrists. Featuring a coincidence focusing system and 15x eyepiece, it allows clear, precise readings while maintaining patient comfort through its vertically positioned, adjustable headrest. The keratometer offers a dual eye-level sighting system, measuring both meridians in one position without needing optical adjustments. With a measuring range of 9.5–6.5 mm (0.05 mm steps) and diopter range of 36–52 D (0.25 D steps), it ensures accuracy for both corneal and contact lens curvature assessments. Built with a durable black-finished body weighing 10 kg, it is robust for hospital and clinic use. The instrument is supplied with accessories including a dust cover, calibration ball, and spare bulb, while manual and motorized stands are available as optional upgrades for enhanced usability.
Specifications of Manual Keratometer
| Shipping Weight | 6.0 kg |
| Shipping Dimensions | 40 × 30 × 45 cm |
| Material | Metallic body with achromatic optics |
| Colour | Black |
| Design | Manual, vertically adjustable headrest with coincidence focusing |
| Utility | Corneal curvature & astigmatism axis measurement |
| Measuring Range | 9.5–6.5 mm radius (0.05 mm steps), 36–52 D (0.25 D steps) |
