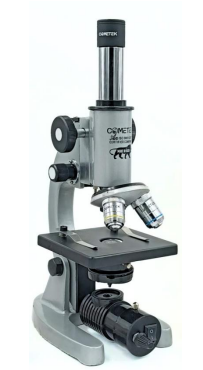

STUDENT MICROSCOPE (SM-01)
Offer end in:
The Student Microscope (SM-01) is a monocular compound microscope designed for schools, colleges, and academic laboratories. Featuring a sturdy and well-balanced body with 90° inclined viewing, it ensures comfort during extended study sessions. With a triple revolving brass nosepiece, Abbe condenser, and achromatic optics, it provides high-quality imaging for detailed biological study.
In Stock
10 items remaining
Description
The SM-01 Student Microscope is an essential educational instrument built for durability and precision. Its sturdy monocular body is inclined at 90° to the horizontal, offering ergonomic comfort for students. The fixed square stage (110mm x 110mm) comes with spring-loaded clips to firmly hold slides in place during observation.The microscope includes coarse and fine focusing controls, ensuring smooth and precise adjustments for clarity at various magnifications. The triple revolving brass nosepiece with click-stop mechanism ensures proper centering of objectives, enhancing ease of use and repeatability.For optical performance, the SM-01 is fitted with an Abbe condenser (N.A. 1.25) with iris diaphragm and plano-concave mirror illumination, ensuring bright and evenly lit fields of view. It comes equipped with a WF10x eyepiece and 10x & 45x achromatic brass objectives, offering a magnification range of 100x–450x.

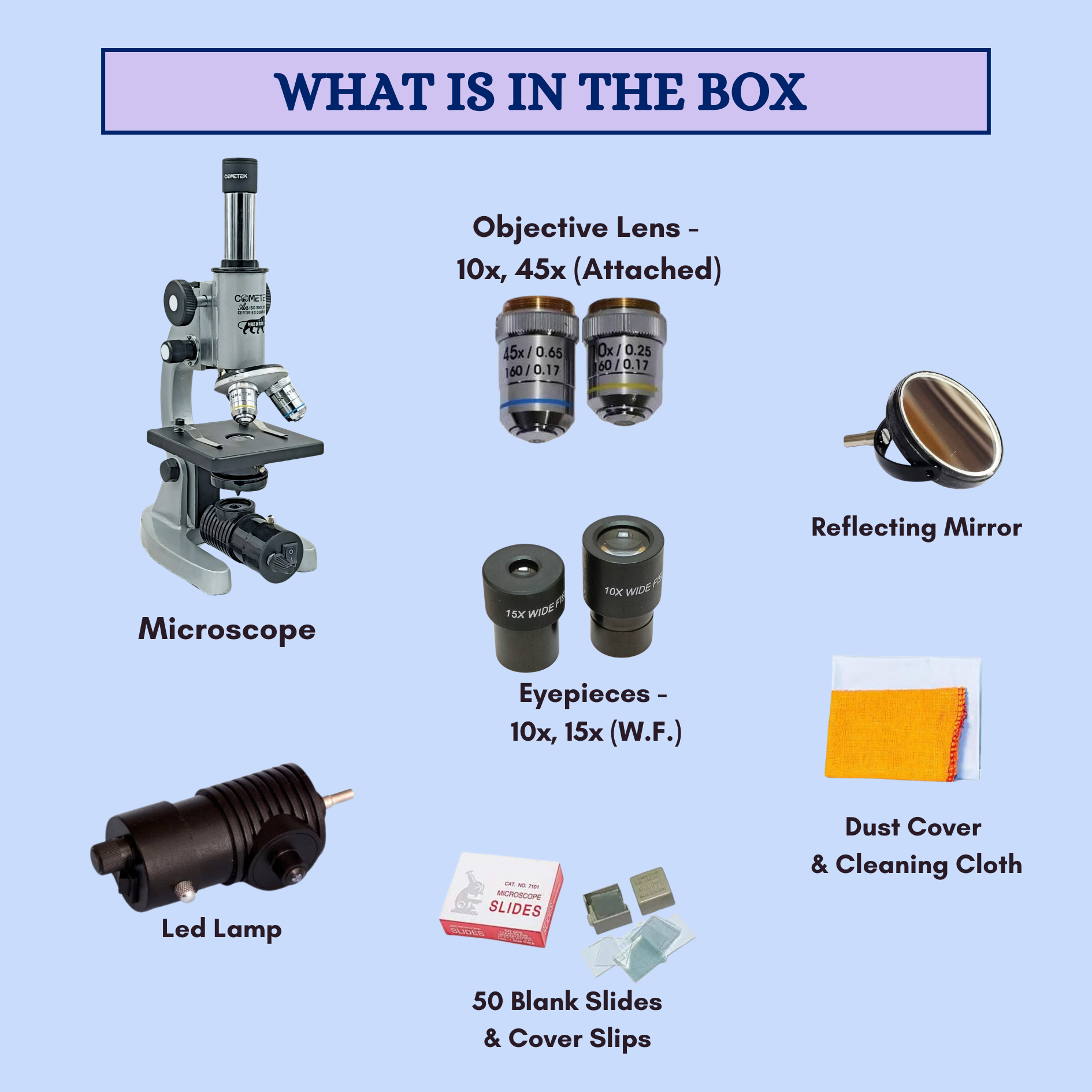

Optional accessories, including additional objectives, eyepieces, a mechanical stage, LED sub-stage lamp, and a wooden storage box, extend its utility for advanced academic work.

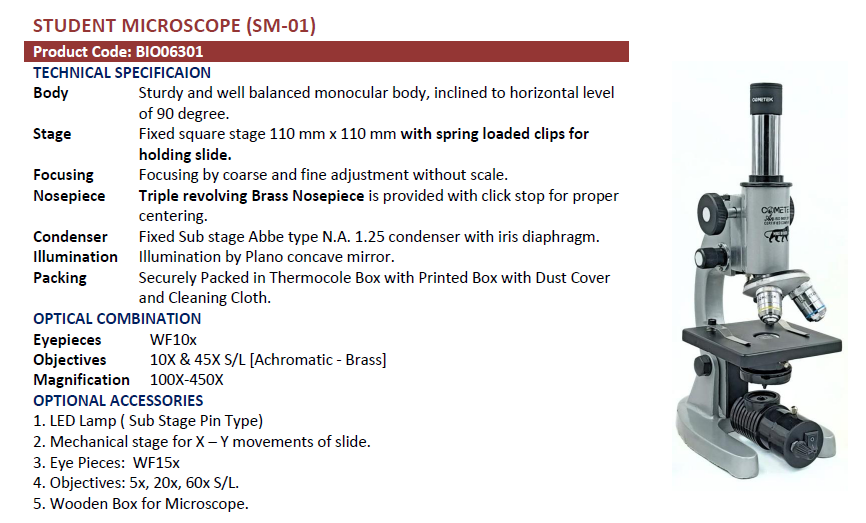

Specifications of STUDENT MICROSCOPE (SM-01)
| Shipping Weight | 3 kg |
| Shipping Dimensions | 35 × 25 × 20 cm |
| Color | Metallic with polished finish |
| Material | Brass nosepiece & achromatic optics |
| Magnification Options | 100x – 450x |
| Condenser | Abbe condenser (N.A. 1.25) |
| Focusing System | Coarse & fine adjustments |
| Stage Type | Fixed square stage (110mm x 110mm) |
