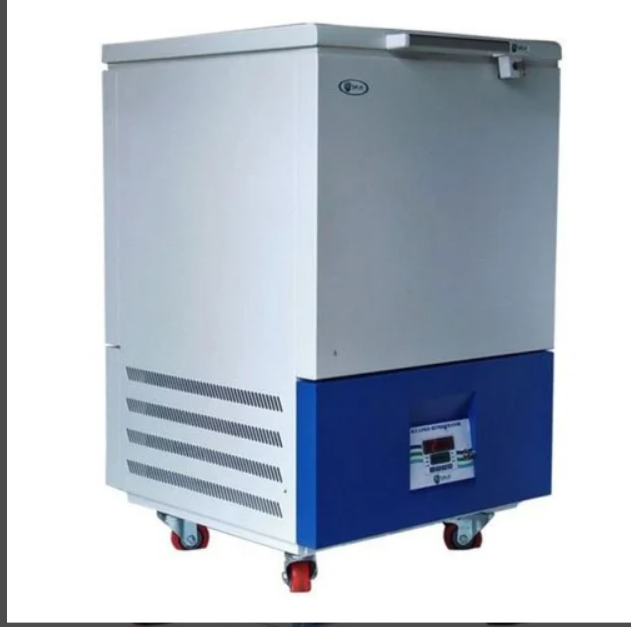

ICE LINED REFRIGERATOR
Offer end in:
The STD SILR Series Ice Lined Refrigerator is an affordable, durable, and precise cold-chain solution built with an SS 304 inner chamber and powder-coated MS exterior. With triple-wall insulation, blower circulation, and microcontroller-based control, it maintains +2 °C to +8 °C with ±0.2 °C accuracy and a 36-hour holdover time. Ideal for hospitals, labs, and vaccination centers where cost-effective cold storage is essential.
Volume (in Liters)
Out Of Stock
Clear
Description
The Ice Lined Refrigerator – STD Model (SILR Series) is a robust and economical cold-chain equipment designed to store vaccines, blood components, and medical reagents under a controlled environment of +2 °C to +8 °C. These refrigerators are engineered with a stainless steel 304 inner chamber that ensures hygiene, corrosion resistance, and easy cleaning, while the outer body is constructed from mild steel sheet with durable powder coating, making the unit cost-effective yet sturdy.The triple-walled construction provides superior insulation, with the second wall chemically treated and coiled to maintain the internal temperature even during power interruptions. High-density PUF insulation minimizes thermal loss, while a blower system ensures uniform airflow inside the chamber, maintaining a precise temperature uniformity of ±0.2 °C. The system has a holdover time of 36 hours, meaning vaccines and biological materials remain preserved for long durations without risk, even if external conditions fluctuate.Each unit is controlled by a microcontroller-based LCD display that provides real-time monitoring of internal conditions. The controller is equipped with an audio-visual alarm system that immediately alerts operators in case of temperature deviations. To support critical storage during power failures, the STD models also feature a battery backup for the display (36 hours), ensuring continuous visibility of temperature conditions. A built-in LED chamber lamp illuminates the storage area for easy access and monitoring.The STD versions of the SILR series are particularly suited for hospitals, primary health centers, diagnostic laboratories, blood banks, and vaccination depots, where compliance with strict GMP standards is not mandatory but reliability and affordability are essential. They are widely used in national immunization programs, clinical research facilities, and teaching hospitals due to their combination of rugged construction, energy efficiency, and precise control.
By offering capacities ranging from 70 liters to 500 liters, the SILR STD models allow institutions to choose according to their storage scale—from small local clinics managing routine immunization schedules to large district hospitals handling bulk vaccine supplies. Optional accessories like stabilizers, data loggers, and stainless steel trays further enhance operational reliability.
Specifications of ICE LINED REFRIGERATOR
| Material | SS 304 stainless steel inner chamber; MS powder-coated outer body |
| Colour/Finish | Silver (inner), white/grey powder-coated (outer) |
| Design | Vertical, triple-wall insulated with chemical lining |
| Temperature Range | +2 °C to +8 °C |
| Volume (in Liters) | 70 , 100 , 120 , 150 , 200 , 300 , 400 |
