HOLTER ECG SYSTEM

Share on:

Offer end in:

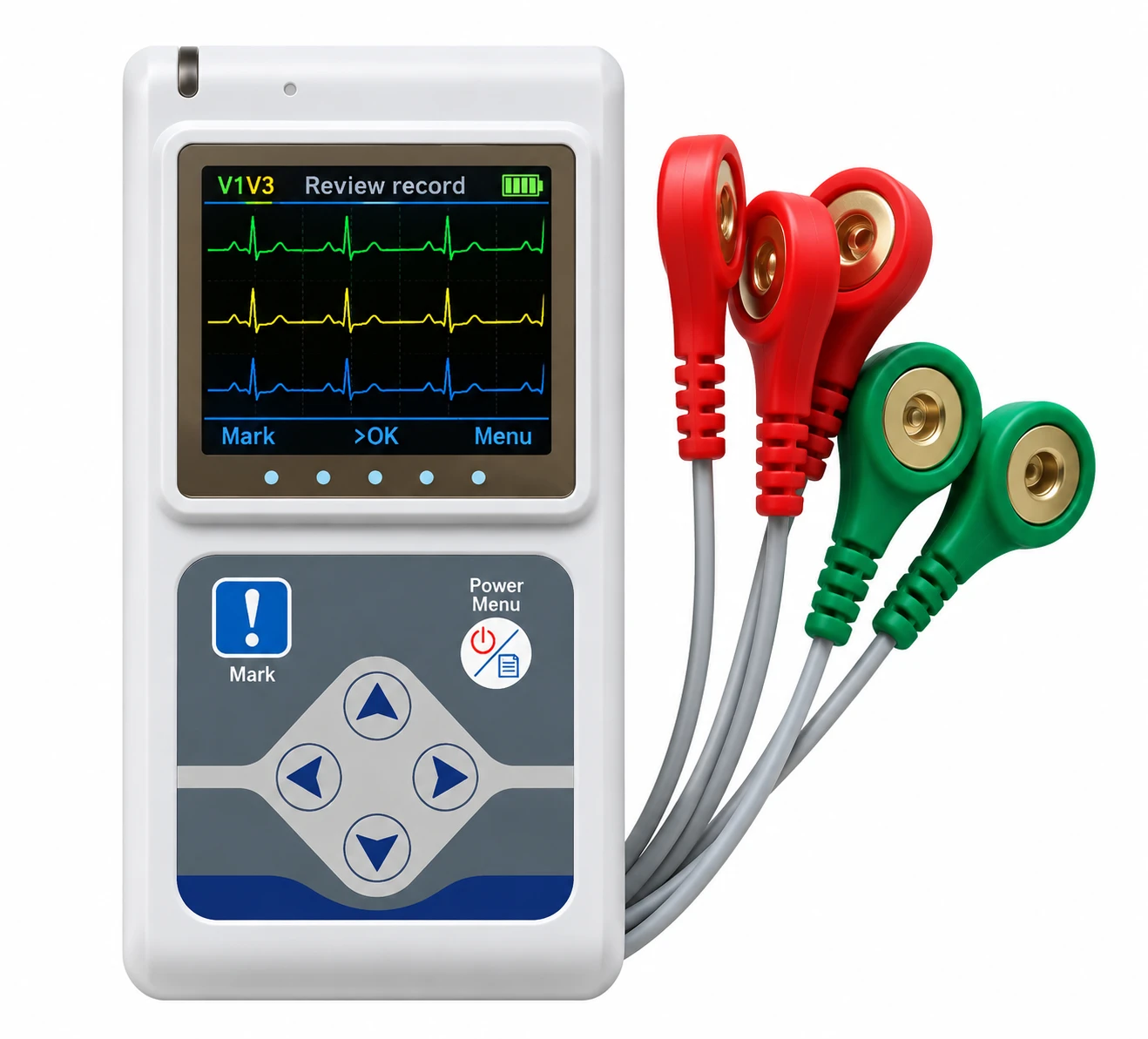

Pulse Vital HEC3 Holter ECG System is a portable 3-channel ECG recorder designed for continuous cardiac monitoring over 24 hours. It features waveform preview, recording review, and event marking functions for convenient ECG analysis. The device uses high-precision sampling technology to support detailed waveform recording and pacemaker activity detection. Its compact design, USB 2.0 connectivity, and battery-powered operation make it suitable for ambulatory cardiac monitoring.

In Stock

Description Specification

Pulse Vital HEC3 Holter ECG System is a portable cardiac monitoring device designed to record and store continuous 3-channel ECG data over a 24-hour period. It features a compact design with waveform preview, recording review, and event marking functions for convenient assessment of recorded cardiac activity. The device uses 12-bit sampling technology to capture ECG waveforms and supports accurate recording timestamps through its real-time clock. Its high-frequency sampling capability helps record detailed ECG signals and pacemaker activity during extended monitoring. The system includes USB 2.0 connectivity for transferring recorded data and reviewing ECG cases through compatible software. It offers a standard sensitivity of 10 mm/mV ±5%, a scan speed of 25 mm/s ±5%, and a common-mode rejection ratio greater than 60 dB. The device also features a noise level below 30 µV and supports a DC polarization voltage of ±300 mV with a sensitivity shift below ±10%. Powered by two AA batteries, the recorder measures approximately 111 × 60 × 25 mm and weighs around 105 g without batteries, making it convenient for ambulatory ECG monitoring.

Specifications of HOLTER ECG SYSTEM

Shipping Weight	0.105 kg
Shipping Dimensions	11.10 × 6.00 × 2.50 cm
Performance	Stable, dependable and durable operation with advanced design and technology
Anti-Interference	Anti-jamming and aseismatic capability
Display	Small volume with OLED screen, resolution 160×128
Recording Functions	Waveform preview, record review and event marking
Time Recording	Accurate recording of data sampling start time using the built-in real-time clock
Data Storage	Built-in TF card storage to prevent damage caused by repeated insertion and removal
Pacemaker Detection	Accurate recording of pacemaker activity using higher sampling frequency
ECG Recording	International standard 12-lead, 24-hour ECG recording according to ECG standards
