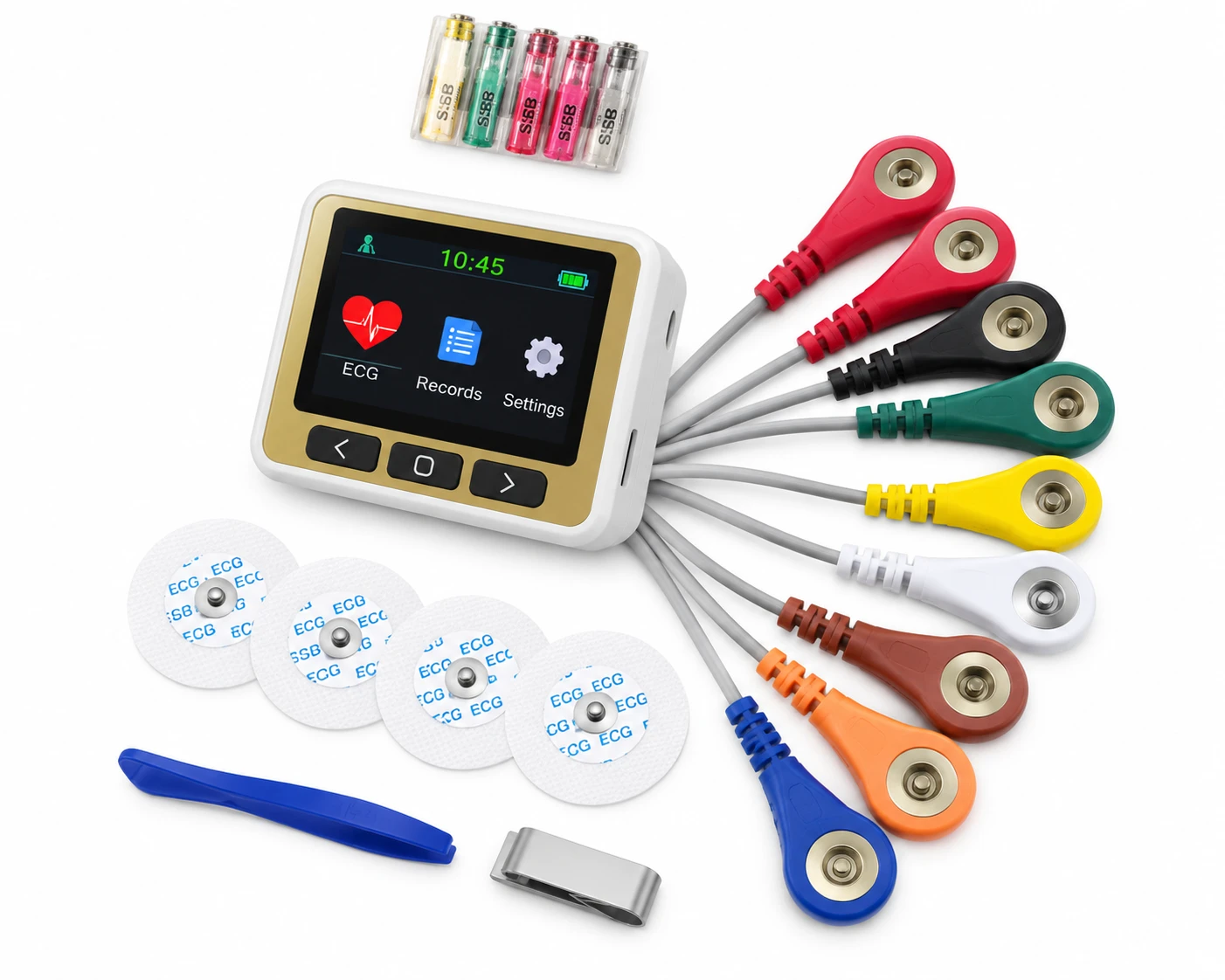

Pulse Vital HEC12 Holter ECG System is designed for continuous 12-channel ECG recording to support cardiac assessment over extended periods. It supports 24-hour ECG monitoring and features a compact design with a 160 × 128 pixel OLED display. The system includes waveform preview, recording review, and event marking functions for convenient data analysis. Its internal TF card storage and USB 2.0 connectivity enable reliable data storage and efficient transfer for clinical review.

In Stock

Description Specification

Pulse Vital HEC12 Holter ECG System is a portable cardiac monitoring device designed to record and store continuous 12-channel ECG data over a 24-hour period. It features a compact OLED display with a resolution of 160 × 128 pixels for convenient waveform preview and recording review. The system supports event marking and accurate recording timestamps using its real-time clock. Its high-frequency sampling design helps capture detailed ECG waveforms and pacemaker activity during extended monitoring. Data is stored on an internal TF card, with support for storage capacity up to 2 GB, helping preserve original recordings without compression. The device uses a USB 2.0 interface to facilitate data transfer and efficient review of recorded cases. It offers a 12-bit sampling specification, standard sensitivity of 10 mm/mV ±5%, and a scan speed of 25 mm/s ±5%. Additional specifications include a noise level below 30 µV and a common-mode rejection ratio above 60 dB. Powered by two AA batteries, the compact unit measures approximately 111 × 60 × 25 mm and weighs around 105 g without batteries, making it convenient for ambulatory ECG monitoring.

Specifications of HOLTER ECG SYSTEM

Shipping Weight	0.105 kg
Shipping Dimensions	11.10 × 6.00 × 2.50 cm
Performance	Stable, dependable and durable operation with advanced design and technology
Anti-Interference	Anti-jamming and aseismatic capability
Recording Functions	Waveform preview, record review and event marking
Time Recording	Accurate recording of data sampling start time using the built-in real-time clock
Storage Capacity	Maximum capacity of 2 GB, saving original data without compression
Pacemaker Detection	Accurate recording of pacemaker activity using higher sampling frequency
ECG Standards	International standard 12 leads, 24-hour ECG recording according to ECG standards
