The ERBA H360 is a compact and reliable 3-part CBC analyzer offering 22 parameters, 60 tests/hour speed, low 9 µL aspiration volume, and storage of 50,000 results with histograms, providing accurate, economical, and user-friendly hematology testing for diagnostic laboratories and hospitals
In Stock
10 items remaining
Description

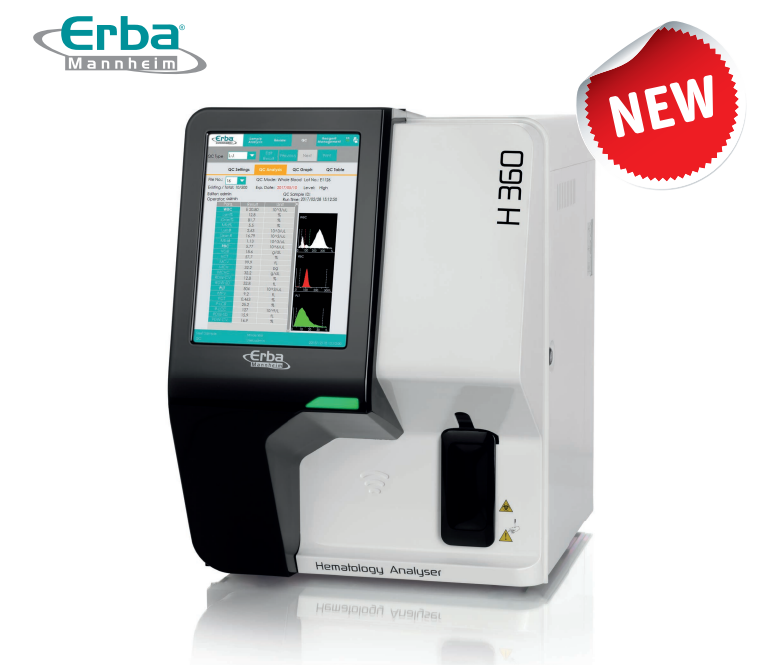

The ERBA H360 Hematology Analyzer is an advanced diagnostic instrument designed for accurate Complete Blood Count testing in hospitals and clinical laboratories. It measures 22 hematology parameters using electrical impedance technology for cell counting and cyanide-free colorimetry for hemoglobin estimation, ensuring safe and reliable performance. The analyzer supports manual, predilute, and capillary sampling modes, making it suitable for different laboratory requirements.
This system requires only 9 µL of whole blood sample, which is ideal for pediatric and critical patients. It delivers a throughput of 60 tests per hour and provides histograms for WBC, RBC, and PLT along with advanced platelet indices such as P-LCR and PDW. The instrument can store up to 50,000 patient results with graphs, enabling efficient data management and long-term record keeping.

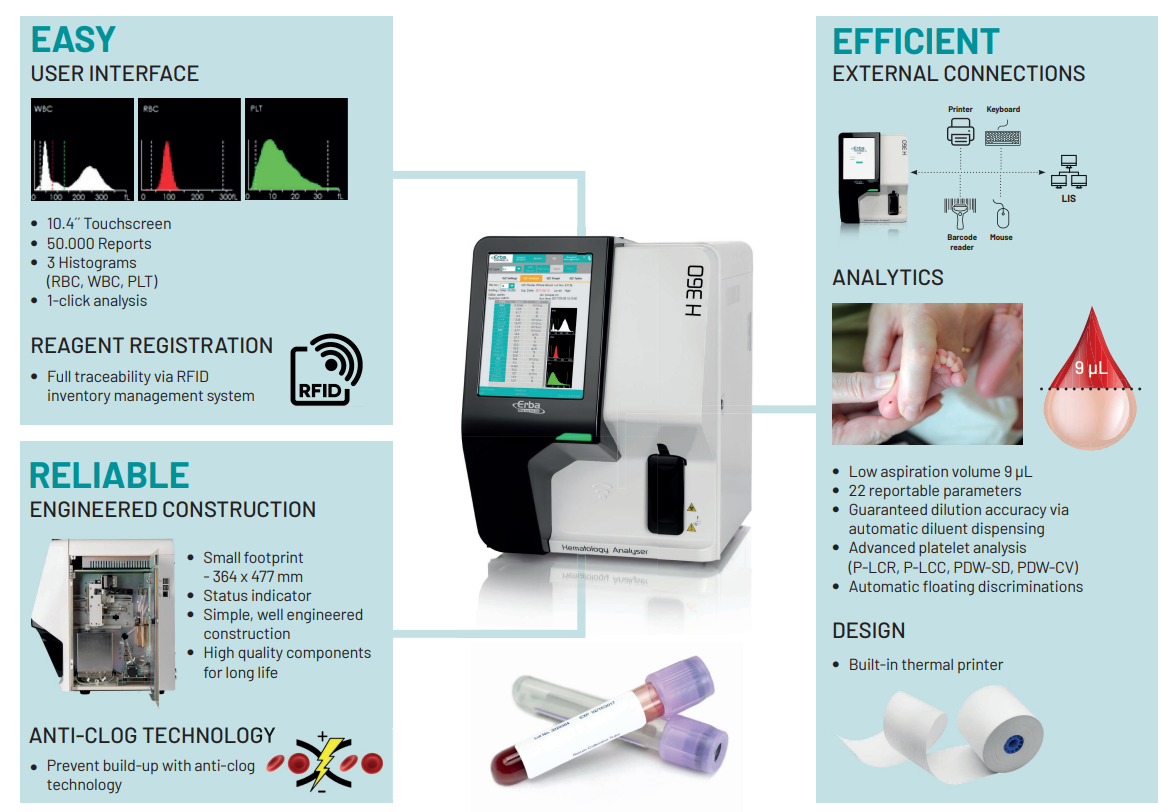

The ERBA H360 is equipped with a 10.4-inch touchscreen display, built-in thermal printer, RFID based reagent management, and anti-clog technology for low maintenance operation. Multiple connectivity options including USB and LAN allow LIS integration and external data transfer. Its compact footprint and user-friendly interface make it a dependable solution for routine hematology diagnostics.
Specifications of Hematology Analyzer
| Shipping Weight | 25 kg |
| Shipping Dimensions | 36.4 × 47.7 × 41.7 cm |
| Colour | Medical white |
| Material | ABS body with precision electronics |
| Type | 3 Part Hematology Analyzer |
| Total Parameters | 22 |
| Principle | Electrical impedance & cyanide-free colorimetry |
| Sample Volume | 9 µL whole blood |
| Throughput | 60 tests/hour |
| Histograms | WBC / RBC / PLT |
| Display | 10.4 inch touchscreen |
| Data Storage | 50,000 results with graphs |
| QC | L-J & X-BAR |
| Reagents | Erba Dil, Erba Lyse, Elite H Clean |
| Interfaces | 4 USB + 1 LAN |
| Printer | Built-in thermal printer |
| Operating Temp | 15–30°C |
| Power | AC 100–240V, 50/60Hz |
