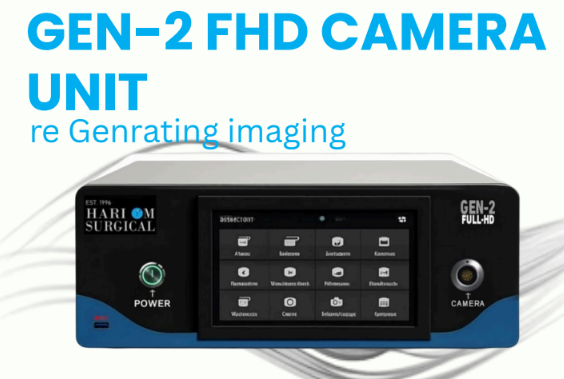

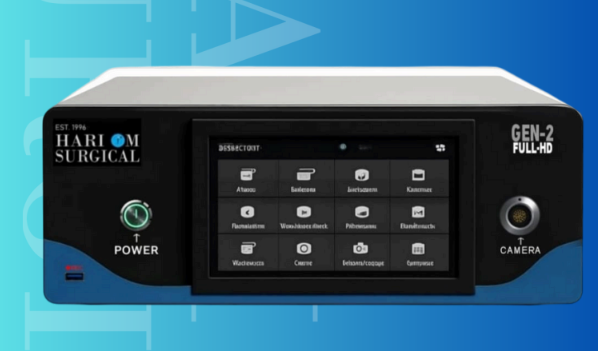

GEN-2 Full HD Endoscopic Camera
Offer end in:
Description
The GEN-2 Endoscopic Camera System is equipped with a 1/2" CMOS Sony Exmor sensor that delivers 2.13 MP effective pixels at SDI 1080P Full HD resolution. It features anti-reflection waterproof optics, ensuring crystal-clear and glare-free imaging when used with rigid endoscopes. The 3.5-inch viewing screen and long-life LED illumination (20,000 hrs, CRI >90, CCT 6500K) further enhance surgical visualization.
The system supports freeze, auto white balance (AWB), digital zoom (0–8x), brightness adjustment (1–30 steps), and is compatible with multiple scopes including laparoscope, hysteroscope, cystoscope, arthroscope, ENT scopes, and fiber scopes. Built from stainless steel with an ergonomic design, it is robust, easy to sterilize, and built for repeated surgical use.
Designed for efficiency, the GEN-2 operates in diverse environments (-30°C to 60°C) with low power consumption (DC12V, <3W) and multi-language support (Chinese, English, Japanese, Korean). Its compact, durable design makes it a reliable choice for modern operating theaters.
Specifications of GEN-2 Full HD Endoscopic Camera
| Shipping Weight | 5 kg |
| Shipping Dimensions | 30 × 25 × 15 cm |
| Type | Camera & Viewing Screen |
| Display | 3.5 inch screen |
| Effective Pixels | 1845(H) × 1097(V), approx. 2.13 MP |
| Resolution | SDI 1080P (Full HD) |
| Optics | Anti-reflection, waterproof, adaptable with rigid endoscopes |
| LED Dimensions | 240 × 270 × 90 mm |
| Digital Zoom | 0–8x |
| Lens Modes | PTED, Fiber, Arthroscope, Cystoscope, Hysteroscope, Laparoscope, ENT |
