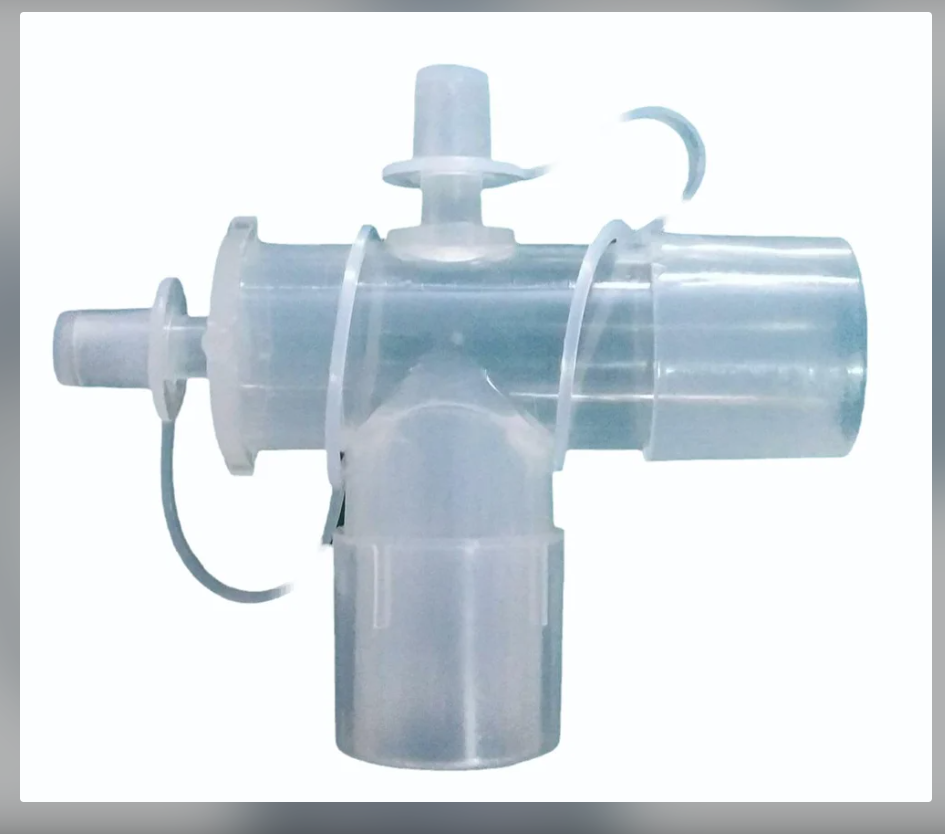

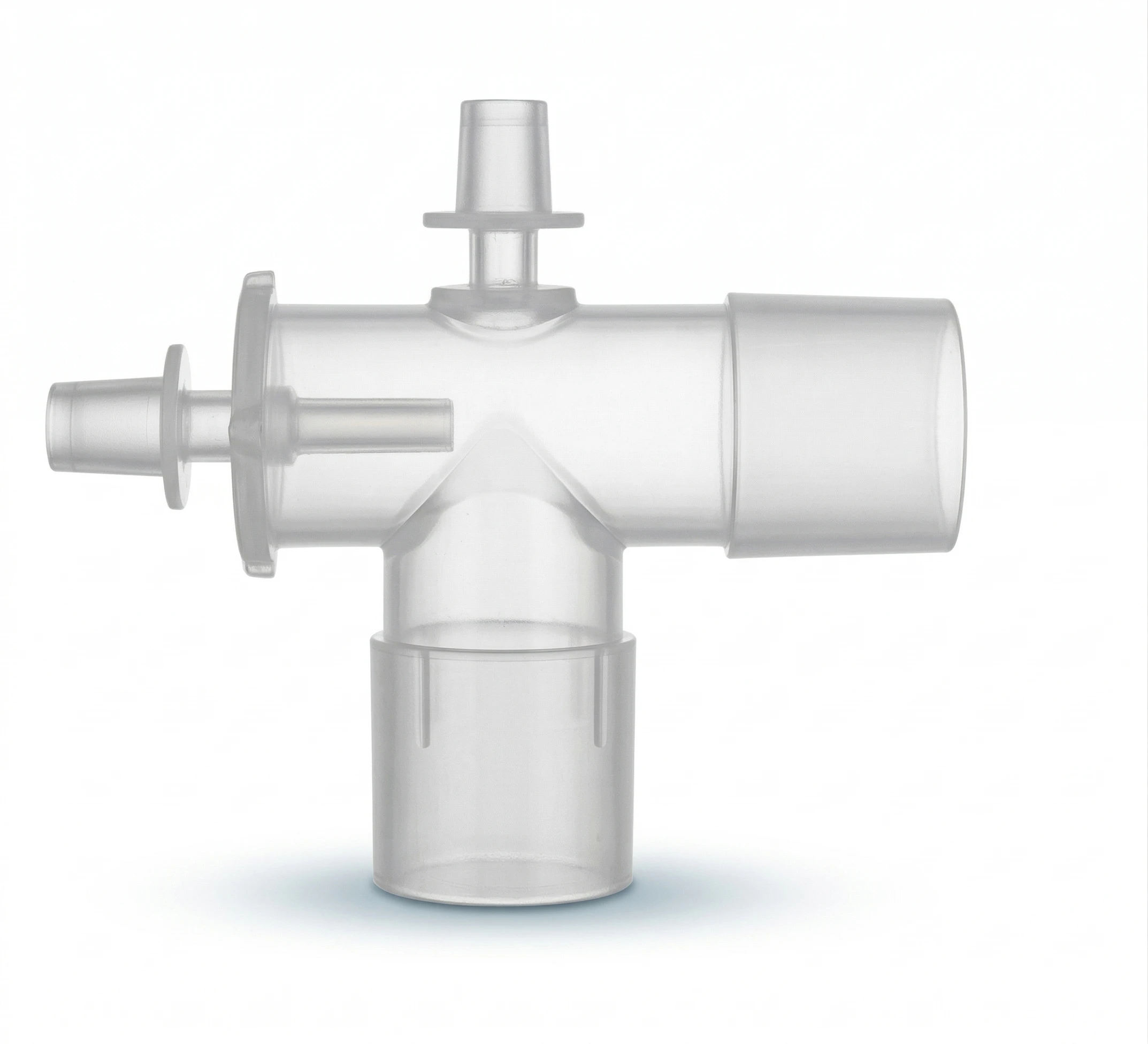

Elbow Connector with Dual Port
Offer end in:
A dual-port elbow connector (22M/15F – 15M) made from transparent medical-grade plastic, designed for ventilator and anesthesia circuits to provide stable, safe airflow connections.
Read More...
In Stock
Description
The Elbow Connector with Dual Port is a precision-designed breathing circuit accessory, used in ventilator, anesthesia, BiPAP, and CPAP systems for secure airflow and exhalation management. Manufactured from medical-grade transparent plastic, this connector features a 22M / 15F – 15M configuration that ensures compatibility with most standard circuits and ET tubes. Its dual exhalation port design provides effective pressure release while maintaining safe ventilation, making it suitable for both adult and pediatric respiratory support. The connector has a compact 52 mm length, 40 mm total height, 4 mm ET tube inner diameter, and a 1.5 mm wall thickness, ensuring durability, low resistance, and leak-proof operation. With an affordable price of ₹150 per piece, it is widely adopted in hospitals, ICUs, OTs, and emergency units.
Specifications of Elbow Connector with Dual Port
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 9 × 7 × 4 cm |
| Type | Elbow Connector with Dual Port |
| Connector Size | 22M / 15F – 15M |
| Material | Medical-grade Plastic (Transparent) |
| Connector Length | 52 mm |
| Connector Thickness | 1.5 mm |
Sold By
Resuscitations private limited
