Digital Melting Boiling Point Apparatus
Offer end in:
Description

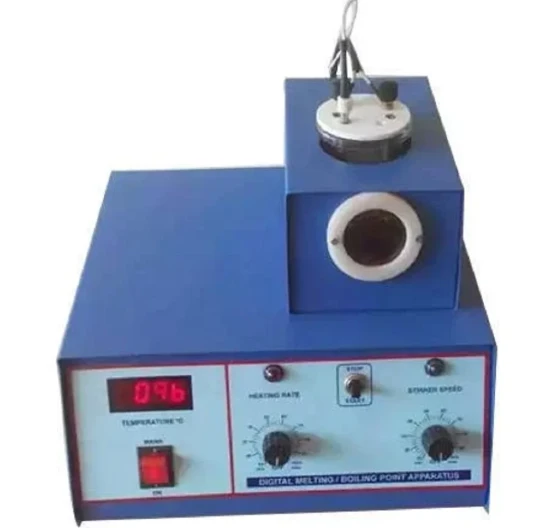

Digital Melting Boiling Point Apparatus is a compact laboratory instrument manufactured with a mild steel powder-coated body, designed for accurate determination of melting and boiling points of solid and liquid samples in pharmaceutical, chemical, and research laboratory environments. The instrument operates across a temperature range from ambient up to 350 degrees Celsius, with an accuracy and resolution of 0.5 degrees Celsius, supporting precise and repeatable thermal analysis during routine and research-grade laboratory procedures. Manufactured in India and operating on a 230V AC, 50 Hz single-phase power supply, the unit is compatible with standard laboratory electrical infrastructure commonly available across Indian institutional and industrial settings.
The apparatus is equipped with a cylindrical silicon oil bath that provides uniform heat distribution during sample testing procedures. An integrated magnetic stirrer with an electronic speed controller supports consistent thermal uniformity within the oil bath throughout the heating cycle. The digital electronic controller allows precise adjustment of the heating rate, supporting controlled temperature progression during melting and boiling point determination. Temperature sensing is facilitated through a PT-100 sensor, which contributes to the measurement accuracy and resolution specifications of the instrument. The LED digital display provides clear and continuous temperature readout during operation, supporting ease of monitoring by laboratory personnel.
The instrument accommodates up to 3 sample capillaries simultaneously, enabling parallel testing of multiple samples within a single run and supporting efficient laboratory workflow management. A USB interface is provided for connectivity requirements within the laboratory setup. The glare-free background illumination with adjustable light intensity supports clear visual observation of the sample capillaries during the melting or boiling point determination process. The apparatus weighs approximately 5 kg, and its compact tabletop form factor supports convenient placement within standard laboratory workbench configurations. Intended for use by trained laboratory and scientific personnel only, in accordance with applicable laboratory equipment operation and safety guidelines.
Specifications of Digital Melting Boiling Point Apparatus
| Shipping Weight | 6.5 kg |
| Shipping Dimensions | 45 × 35 × 35 cm |
| Type | Digital Melting Boiling Point Apparatus |
| color | Standard Laboratory White/Grey finish with clear observation panel. |
| Material | Stainless steel chamber with silicon oil bath, durable outer casing with corrosion-resistant finish. |
