BIPHASIC DEFIBRILLATOR (YELLOW/WHITE)
Offer end in:
Description

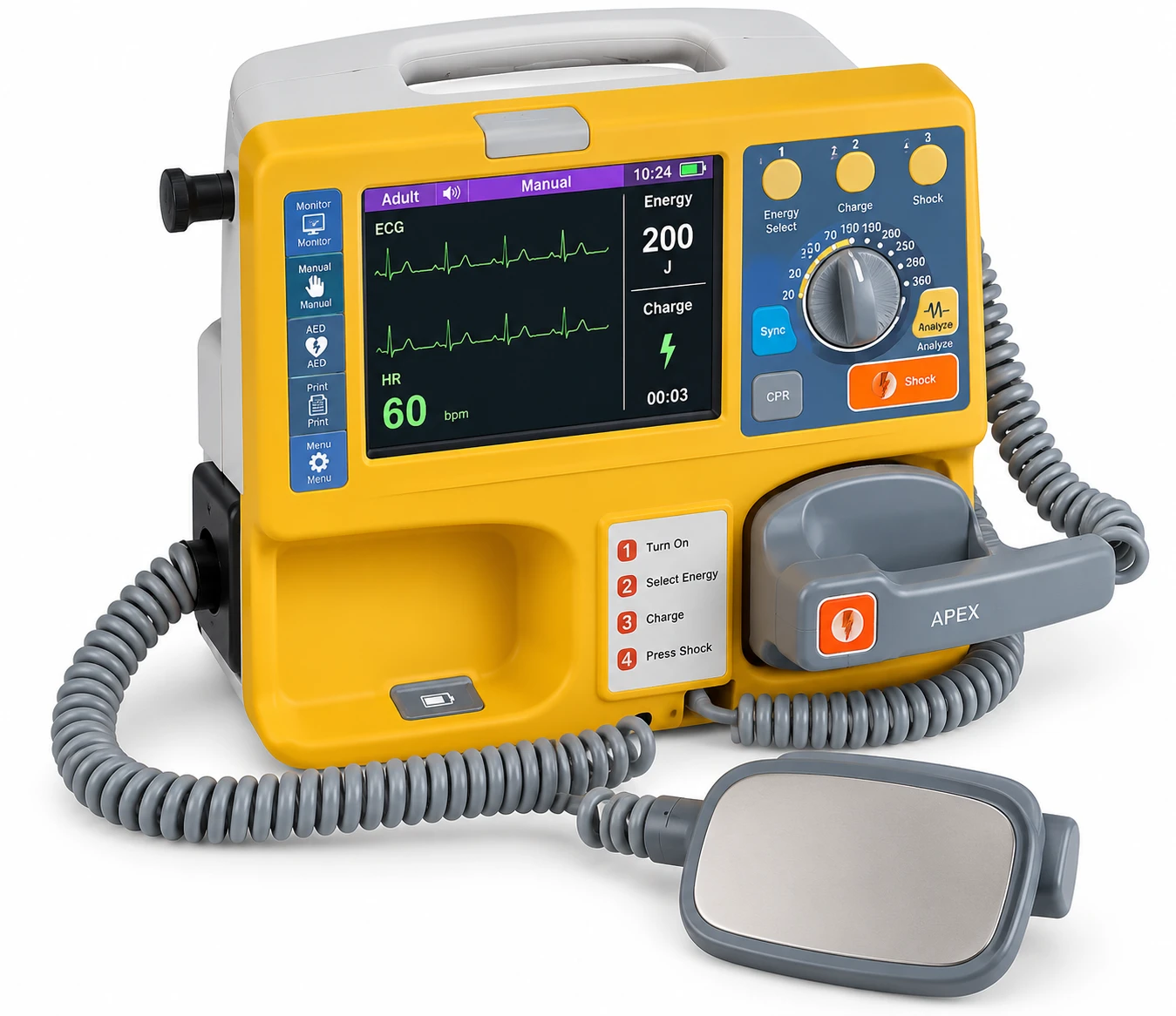

Pulse Vital ZBD Biphasic Defibrillator is a multifunctional medical device designed for cardiac monitoring and defibrillation in emergency and clinical environments. It features a 7-inch color TFT display with an 800 × 480 pixel resolution for clear visualization of ECG waveforms and patient parameters. The device supports two-channel ECG monitoring with 3- or 5-lead electrode configurations and displays up to two waveforms alongside heart rate and pulse information. It offers selectable ECG gain settings of 5, 10, 15, and 20 mm/mV, with sweep speeds of 12.5, 25, or 50 mm/sec. The heart rate monitoring range is 30–240 bpm, with an accuracy of ±2 bpm and a common-mode rejection ratio of 100 dB. An integrated high-resolution thermal printer records ECG waveforms, heart rate, delivered energy, date, time, and patient details on 57 mm × 20 m paper. The device operates on AC 230 V, 50 Hz power and includes a 14.8 V, 4400 mAh rechargeable lithium-polymer battery, with a charging time of approximately eight hours. It provides approximately 40–50 shocks at 270 joules or more than three hours of monitoring without printing, making it suitable for portable emergency response and clinical use.
Specifications of BIPHASIC DEFIBRILLATOR (YELLOW/WHITE)
| Shipping Weight | 5.4 kg |
| Shipping Dimensions | 40.30 × 15.20 × 32.40 cm |
PULSE
