AUTOMATED EXTERNAL DEFIBRILLATOR (AED)
Offer end in:
Description

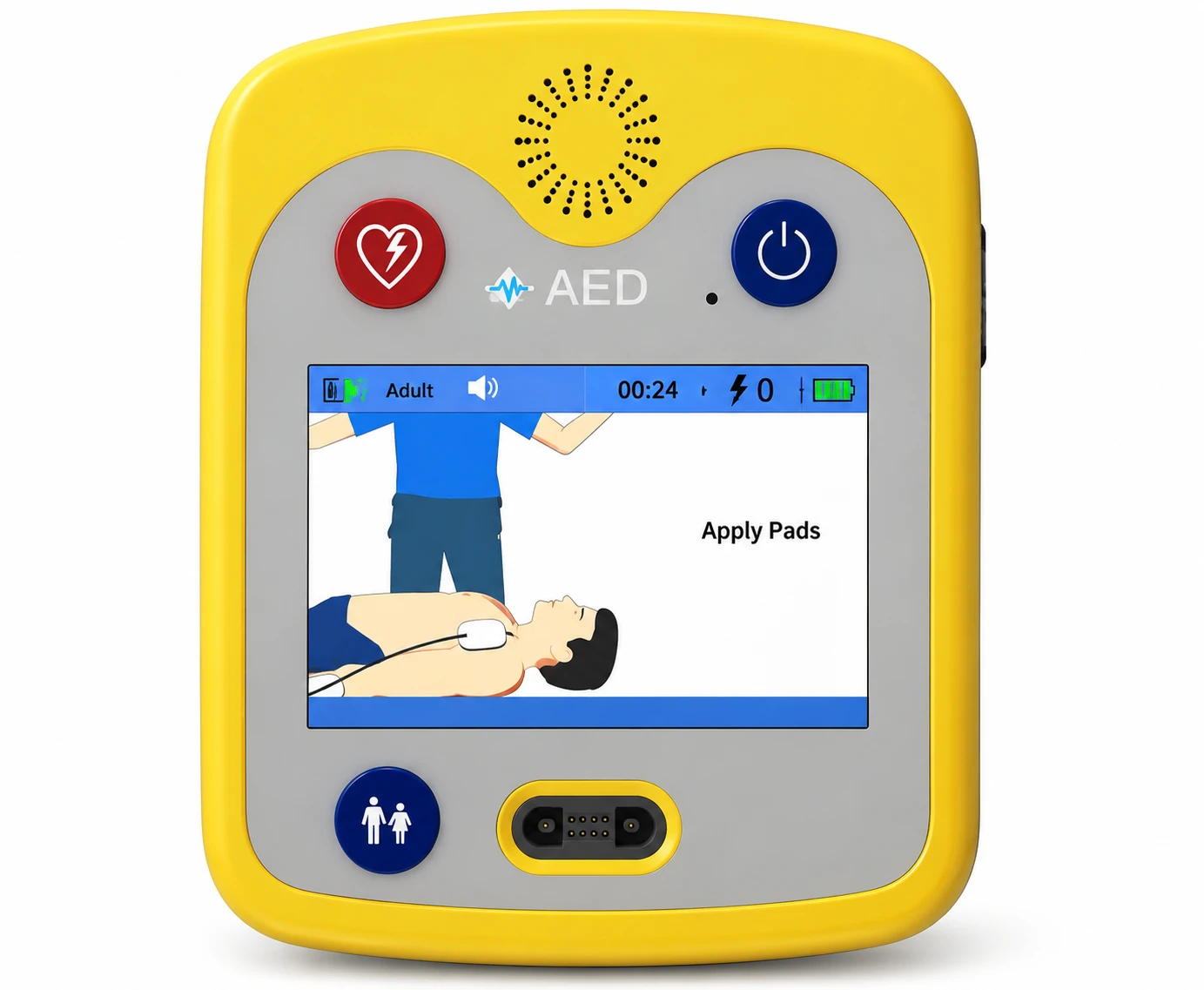

Pulse Vital AED is an Automated External Defibrillator designed to support emergency cardiac care by delivering controlled electrical shocks when indicated. It uses biphasic truncated exponential waveform technology with an energy sequence of 150 J, 150 J, and 200 J. The device features an analysis time of approximately 9 seconds and provides 22 audible prompts alongside LED-based visual guidance to assist users during operation. Its two-button control system includes dedicated On/Off and Shock buttons for straightforward operation. The AED offers an output energy accuracy of ±15% across impedances of 25–175 Ω and a maximum output voltage of 1200 V ±50 V. Its non-rechargeable 2.8 Ah battery supports up to 100 discharges at 200 J or 120 discharges at 150 J, with a stated standby shelf life of seven years after installation. The device operates at temperatures between 0°C and 40°C and supports storage temperatures from −20°C to 55°C. With dimensions of 280 × 209 × 80 mm and a weight of approximately 2.5 kg, it is designed for convenient placement in emergency and clinical settings.
Specifications of AUTOMATED EXTERNAL DEFIBRILLATOR (AED)
| Shipping Weight | 2.5 kg |
| Shipping Dimensions | 28.00 × 20.90 × 8.00 cm |
| Output | Biphasic Truncated Exponential |
| Energy Sequence | 150 J, 150 J, 200 J |
| Charge Time | 8 seconds to 150 J; 10 seconds to 200 J (new battery) |
| Analysis Time | 9 seconds |
| Audible Prompts | 22 audible prompts |
| Output Energy Accuracy | ±15% into any impedance from 25 Ω to 175 Ω |
| Maximum Voltage | 1200 V ±50 V |
