A Scan Biometer
Offer end in:
Description
A Scan Biometer by Matronix is a manual operation ophthalmic ultrasound biometry instrument designed for precise ocular measurement in ophthalmology departments, eye care hospitals, and cataract surgery centers. The instrument supports measurement of anterior chamber depth, lens thickness, vitreous length, and axial length parameters, providing the comprehensive ocular biometry data set required for intraocular lens power calculation prior to cataract surgery and other ophthalmic surgical planning procedures. Compatible with a wide input voltage range of AC 100 to 240V at 50 to 60 Hz, the instrument is suitable for deployment across varied institutional electrical infrastructure conditions within India and international ophthalmic clinical settings.
The instrument incorporates six IOL power calculation formulas including Binkhorst, Haigis, Hoffer-Q, Holladay, SRK-II, and SRK-T, providing the examining ophthalmologist with a comprehensive selection of established intraocular lens calculation methodologies to accommodate different patient biometry profiles and surgical planning preferences. The measurement resolution of 0.01 mm supports precise and detailed ocular dimension data capture during biometry sessions, contributing to accurate IOL power determination for individual patients. The gain adjustable range of 0 to 120 dB provides operational flexibility to optimize signal quality during measurement across varied clinical conditions and patient eye characteristics encountered in routine ophthalmic practice.

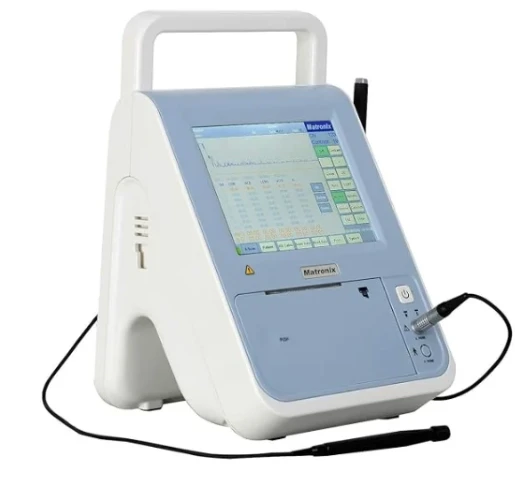

The instrument features a 5.7 inch screen that provides clear display of biometry measurement results, waveform visualization, and operational interface during clinical use, supporting efficient examination and data review at the point of testing. The compact and portable design with an integrated handle allows flexible placement and transport between examination rooms within ophthalmic clinical settings as operational requirements demand. The unit weighs approximately 2 kg with physical dimensions of 200mm length, 168mm width, and 165mm height, making it one of the more portable biometry instruments available for ophthalmic clinical use. A Scan Biometer is intended for use by trained ophthalmologists and qualified ophthalmic clinical personnel only, in accordance with applicable ophthalmic equipment operation, patient examination, and ultrasound safety guidelines.
Specifications of A Scan Biometer
| Shipping Weight | 5 kg |
| Shipping Dimensions | 30 × 26 × 26 cm |
| Type | Biometer |
| Operation Mode | Manual |
| IOL Formula | SRK-T, SRK-II, Binkhorst, Holladay, Haigis, Hoffer-Q |
| Resolution | 0.01mm |
| Gain Adjustable | 0-120 db |
| Power Output | AC 100-240, 50-60HZ |
| Color | Standard medical-grade white with LCD display panel |
| Measurements | ACD, Lens, Vitreous, AXL |
| Unit Size | 200x168x165(mm.LxWxH) |
