6 CHANNEL ECG MACHINE

Share on:

Offer end in:

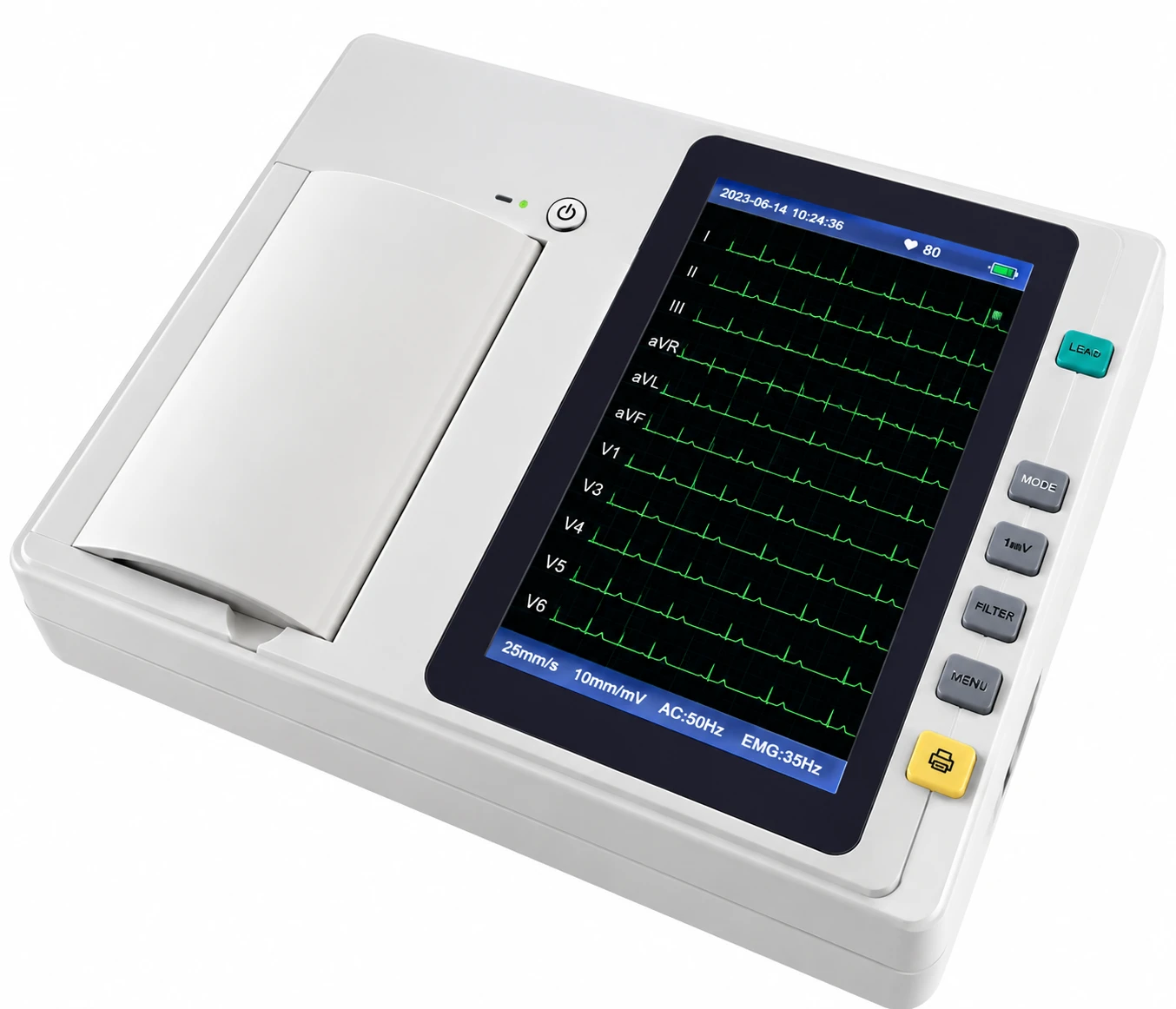

Pulse Vital ZEC6 6 Channel ECG Machine is designed for recording and analyzing cardiac electrical activity with detailed ECG waveform visualization. It features a 7-inch high-resolution color touchscreen and supports simultaneous acquisition and display of 12-lead ECG signals. Automatic ECG measurement and interpretation functions help simplify cardiac assessment, while digital filters reduce common signal interference. Its compact design, rechargeable lithium-ion battery, and expandable memory make it suitable for clinical and diagnostic environments.

In Stock

Description Specification

Pulse Vital ZEC6 6 Channel ECG Machine is an electrocardiography device designed to record, display, and analyze cardiac electrical activity for clinical assessment. It features a 7-inch high-resolution color touchscreen that provides clear ECG waveform visualization and convenient operation. The machine supports simultaneous acquisition and display of 12-lead ECG signals, along with automatic ECG measurement and interpretation functions. Its digital filtering system helps reduce baseline drift, AC interference, and electromyographic (EMG) noise for improved waveform clarity. The device includes a standard 12-lead patient cable and a floating input protection circuit designed to protect against defibrillator effects. It supports automatic and manual recording modes, along with selectable rhythm lead monitoring for flexible ECG recording. Adjustable EMG filters from 25 Hz to 150 Hz and DFT filters of 0.05 Hz and 0.15 Hz support signal processing. USB flash drives and microSD cards can be used to expand memory, while software upgrades are supported through USB or SD card. With a built-in rechargeable lithium-ion battery, dimensions of 260 × 210 × 45 mm, and a weight of approximately 3 kg, it offers a practical solution for clinical and diagnostic use.

Specifications of 6 CHANNEL ECG MACHINE

Shipping Weight	3 kg
Shipping Dimensions	26.00 × 21.00 × 4.50 cm
Display	7-inch high-resolution color touch screen
ECG Leads	12-lead simultaneous acquisition and display
ECG Measurement	Automatic measurement and interpretation function
Digital Filters	Complete digital filters, resisting baseline drift, AC and EMG interference
Design	Compact and lightweight design
Memory Expansion	Supports USB flash disk and micro SD card to extend memory
