5 PARA ETCO2 MODULE
Offer end in:
Description

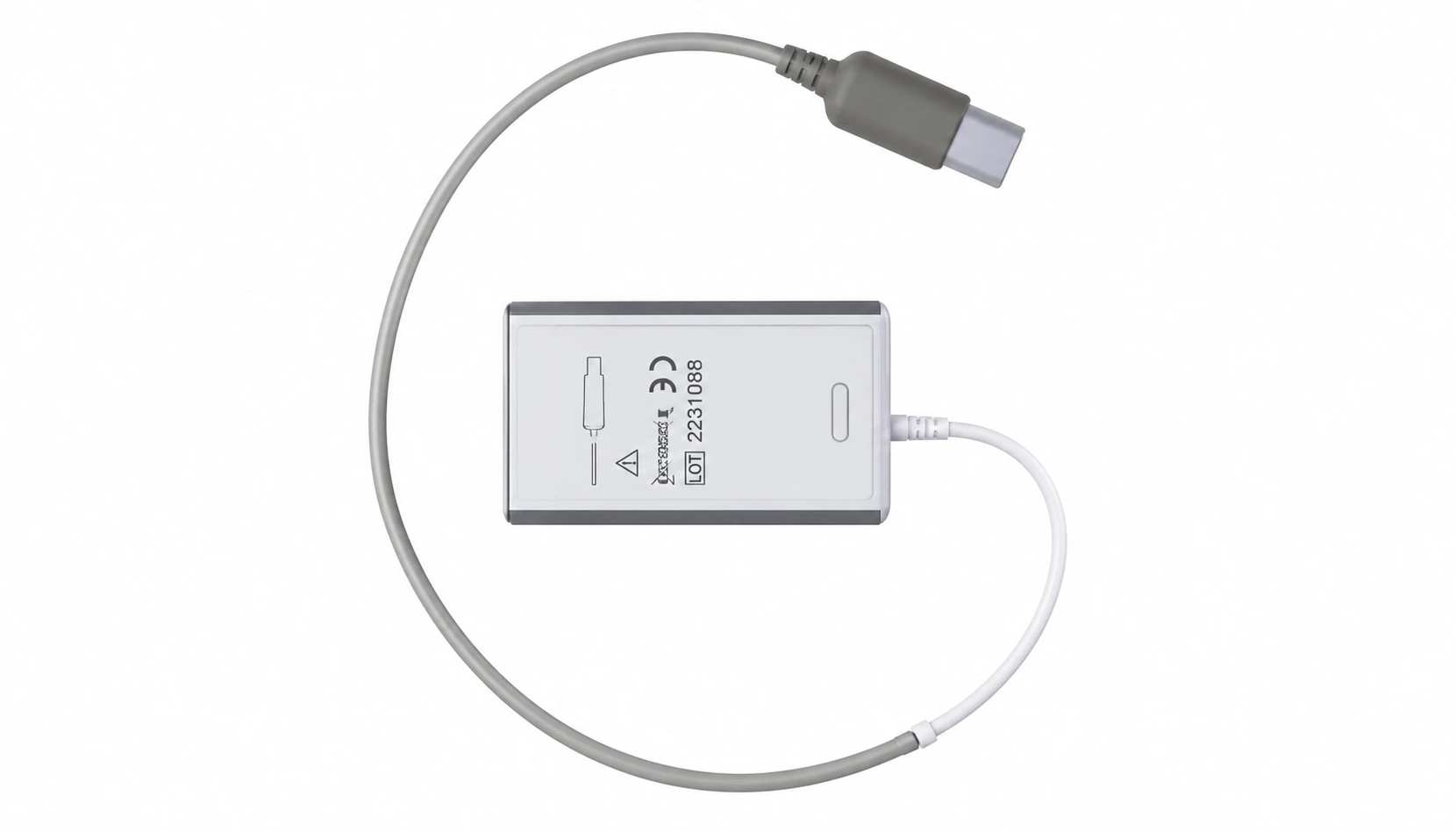

Pulse Vital ZCO2 is a 5 Para EtCO₂ Module designed to provide continuous and reliable respiratory monitoring through accurate carbon dioxide measurement. It offers a CO₂ measurement range of 0–150 mmHg with specified accuracy across different measurement ranges for dependable clinical monitoring. The module continuously measures CO₂ concentration in gases and calculates End-Tidal CO₂ (EtCO₂), Inspired Minimum CO₂ (InsCO₂), and Airway Respiratory Rate (AwRR). It supports respiratory monitoring from 2–150 rpm with an accuracy of ±1 rpm. The module operates on a DC 5.0V working voltage for compatibility with suitable monitoring systems. Its compact construction, clear labelling, and simple operation make it convenient for clinical use. With dimensions of 103 × 69 × 39 mm and a net weight of approximately 141 g, the module is lightweight and easy to integrate.
Specifications of 5 PARA ETCO2 MODULE
| Shipping Weight | 0.141 kg |
| Shipping Dimensions | 10.30 × 6.90 × 3.90 cm |
| CO2 Measurement Range | 0 to 150 mmHg |
| CO2 Measurement Accuracy | 0~40 mmHg: ±2 mmHg; 41~70 mmHg: ±5% of reading; 71~100 mmHg: ±8% of reading; 101~150 mmHg: ±10% of reading |
| Respiratory Monitoring Range | 2 rpm~150 rpm, accuracy: ±1 rpm |
| Working Voltage | DC 5.0V |
| CO2 Measurement | Continuously measures CO2 concentration in gas and calculates End-tidal CO2 (EtCO2), Inspired Minimum CO2 (InsCO2), AirWay Respiration Rate (AwRR) |
| Operation | Simple operation, safe and effective, meets the requirements of relevant standards |
