5 Function Linear Actuator System with Patient Remote & Nurse Panel
Offer end in:

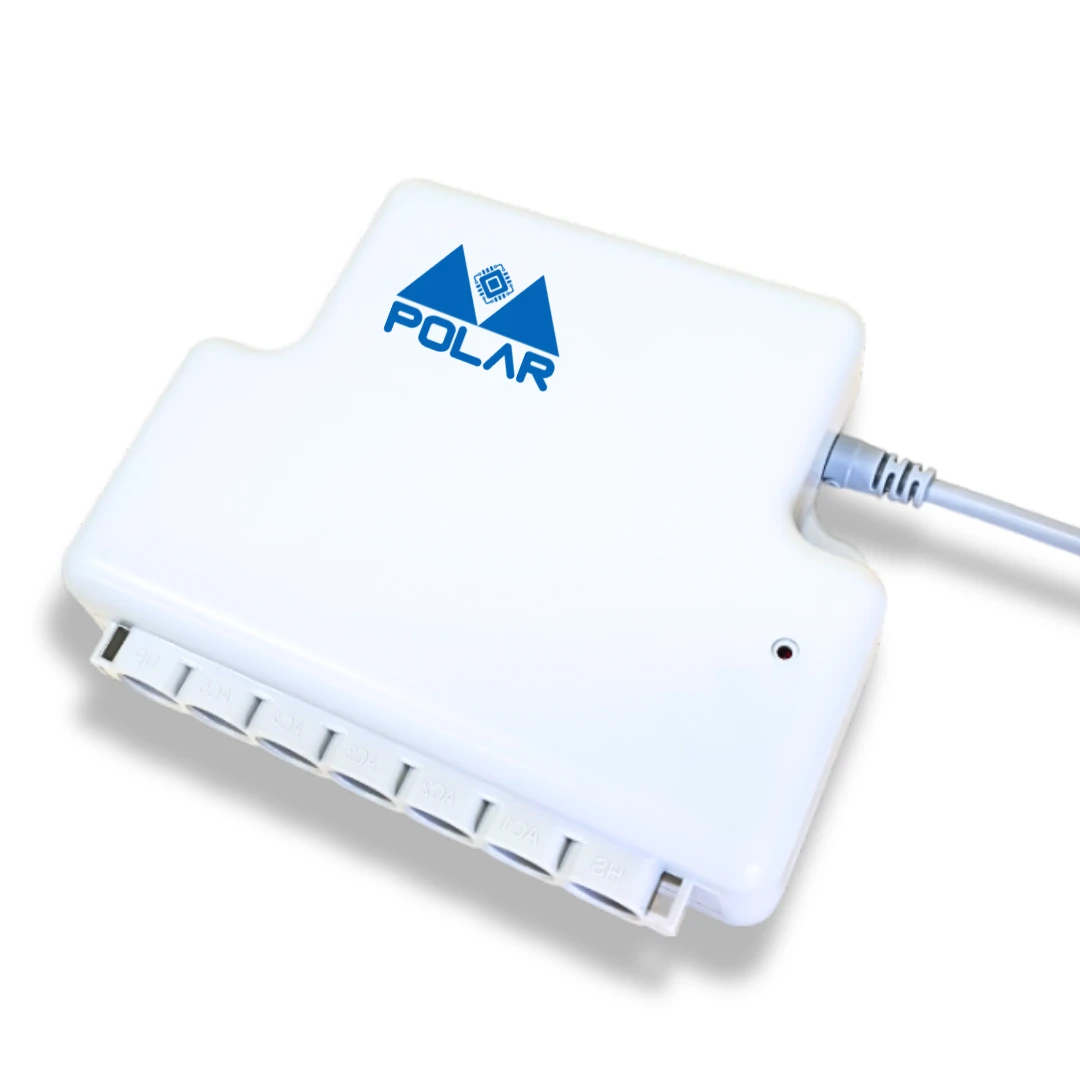

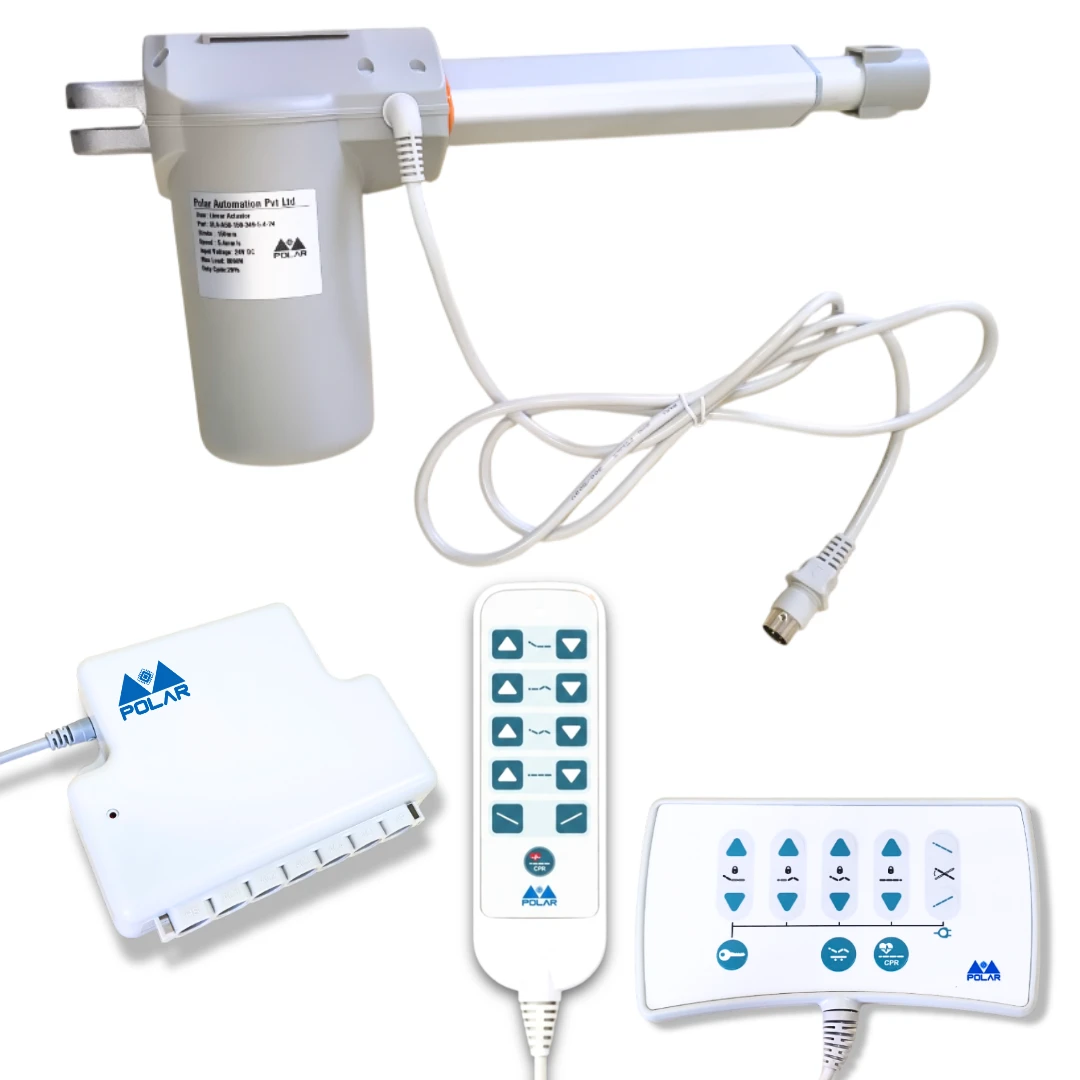

The 5 Function Linear Actuator System with Dual Control integrates both patient remote and nurse panel operation, enabling convenient and secure bed adjustments in hospital and ICU environments. Available in three variants—100 mm standard, 150 mm extended heavy-duty, and 150 mm high-speed CPR compatible, the system operates on 24V DC with a 60 W rating, delivering smooth, quiet motion with load capacities up to 6000 N and speeds up to 8 mm/s. Designed for advanced medical beds, it ensures reliable, safe, and flexible patient positioning for both routine care and emergency situations.
Actuator Type
Out Of Stock
Clear
Description

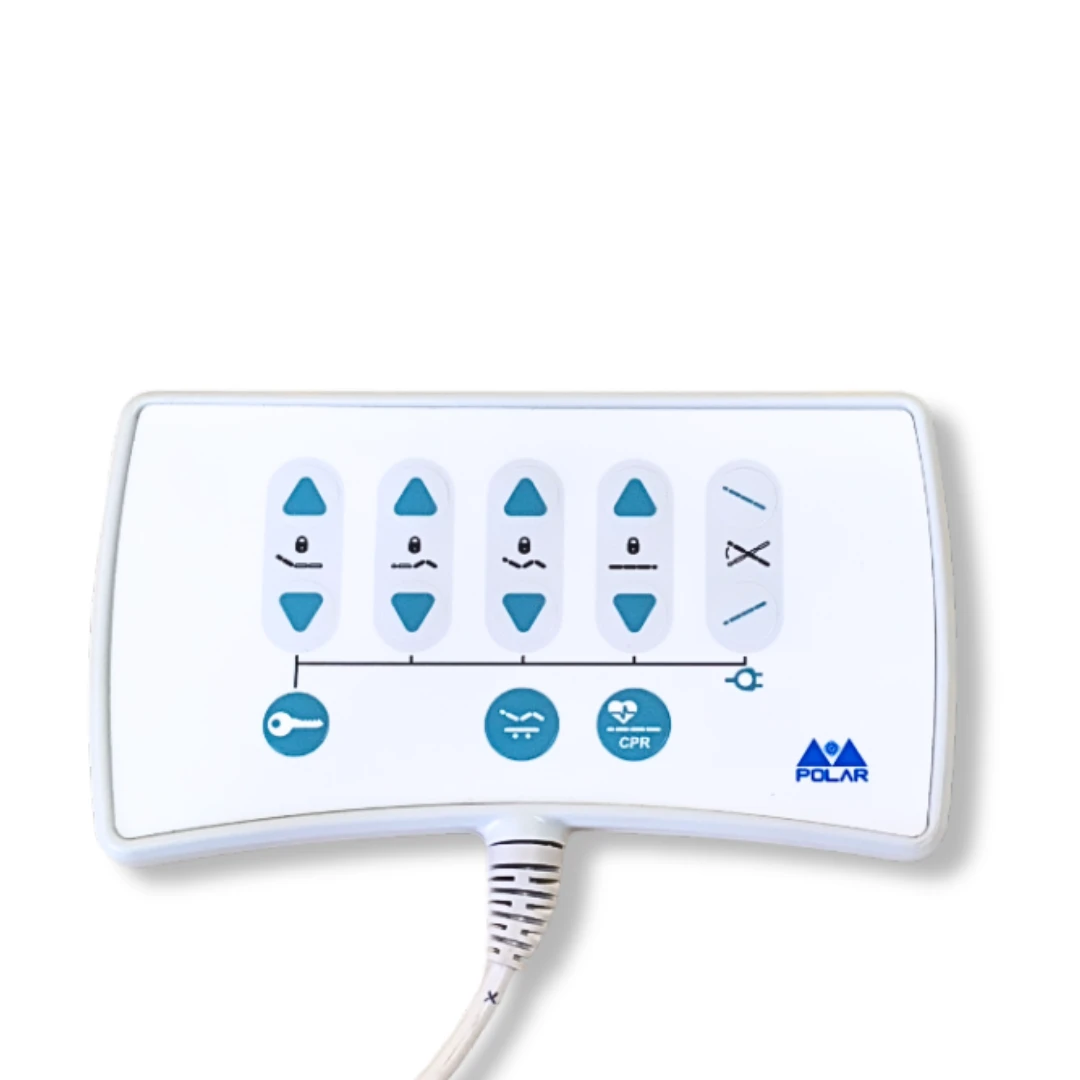

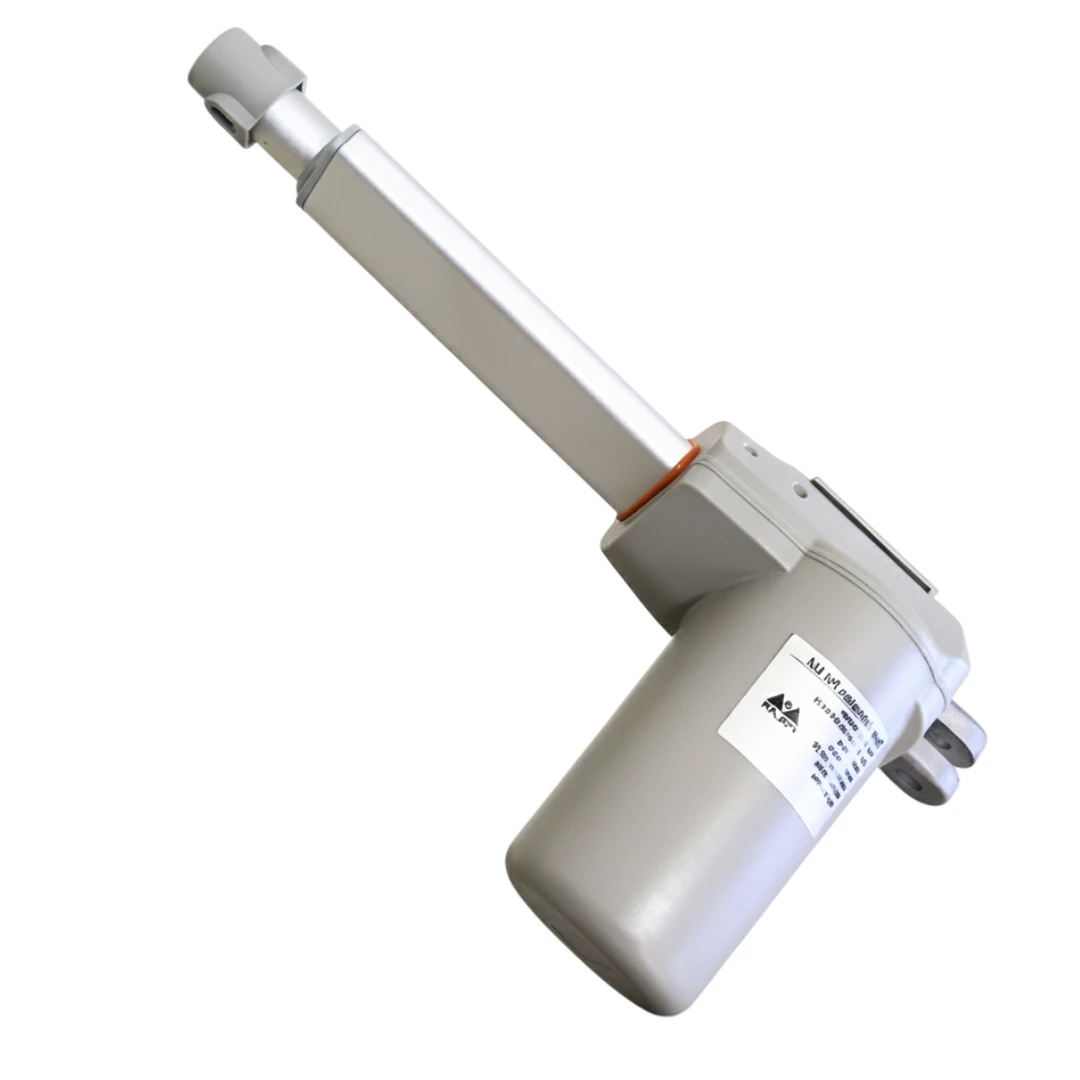

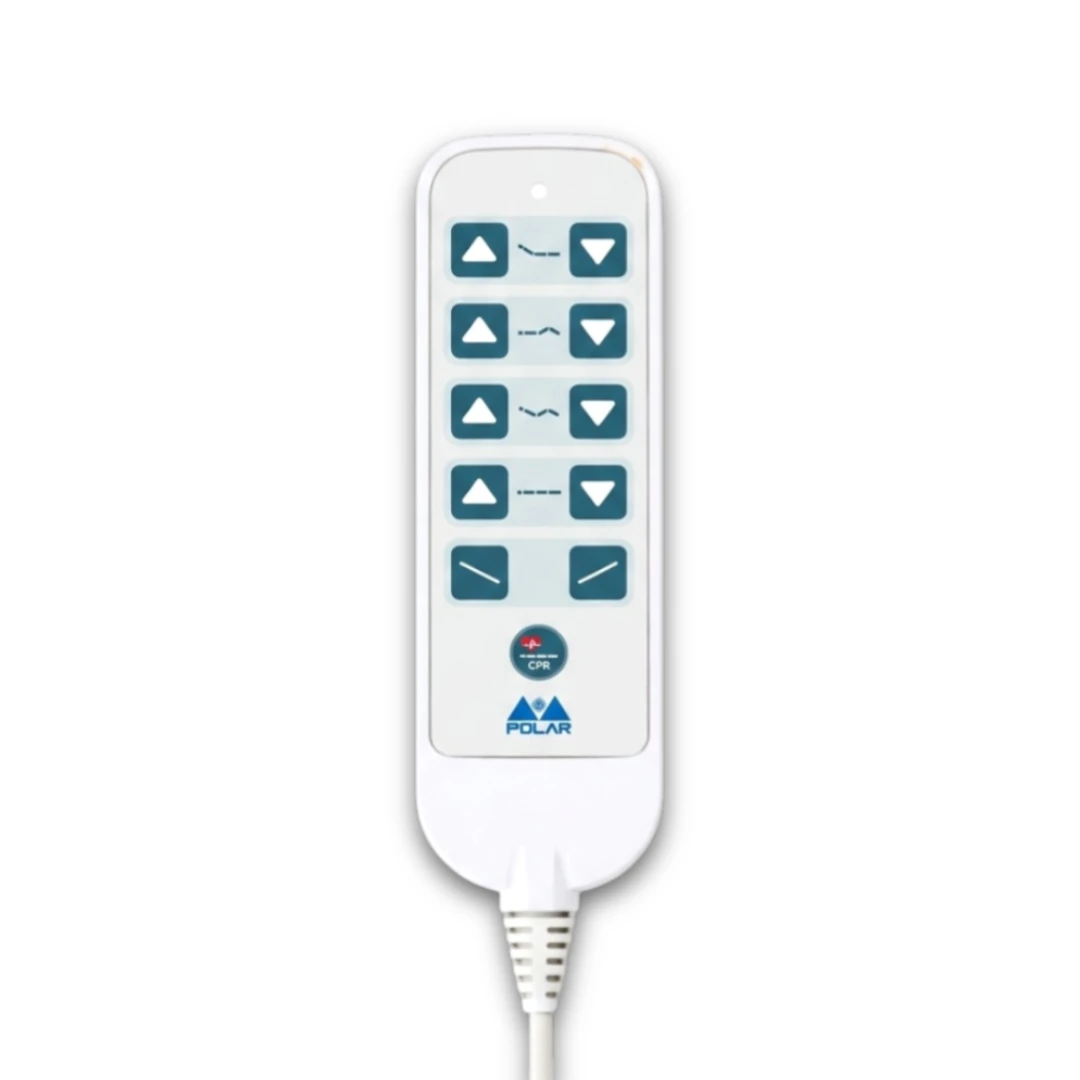

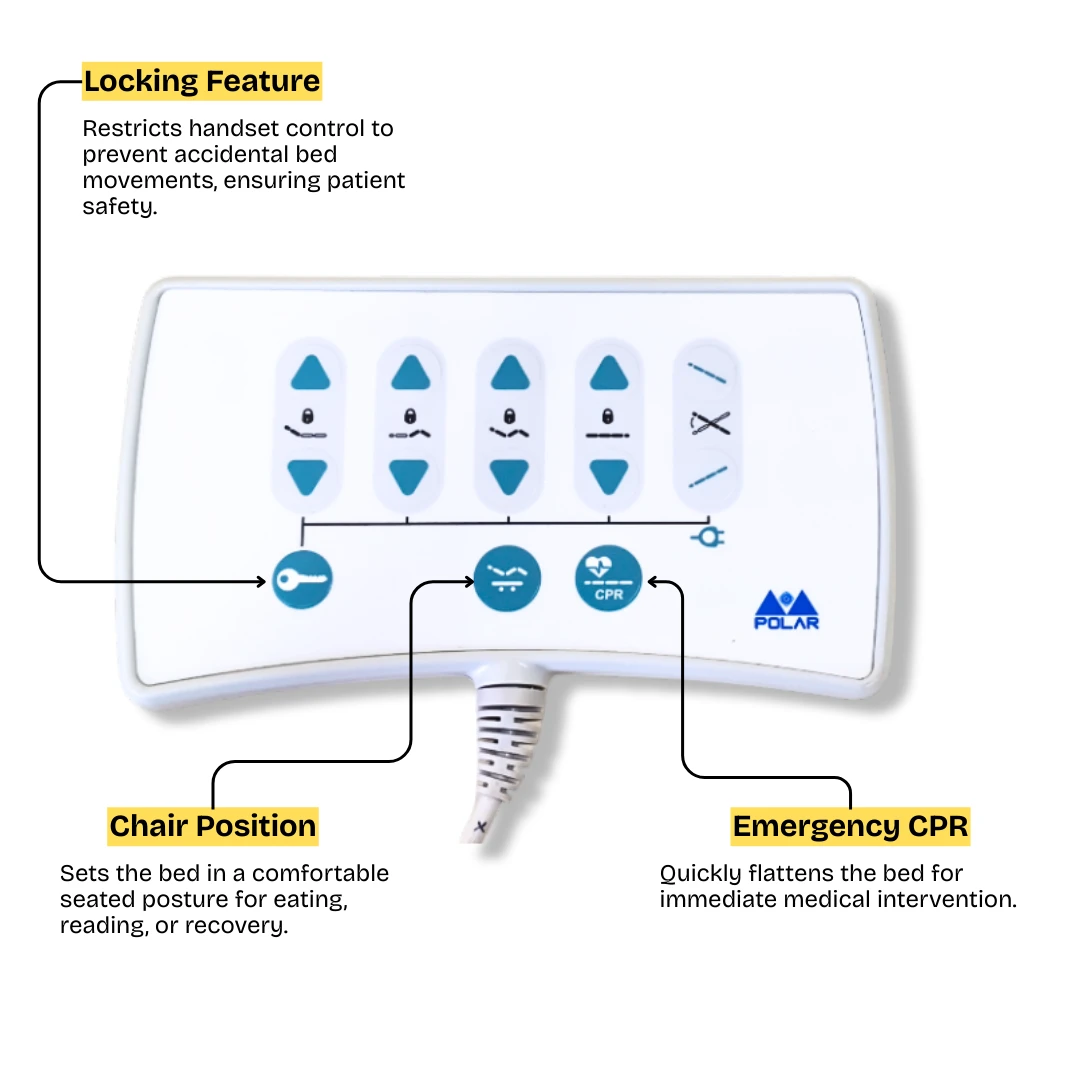

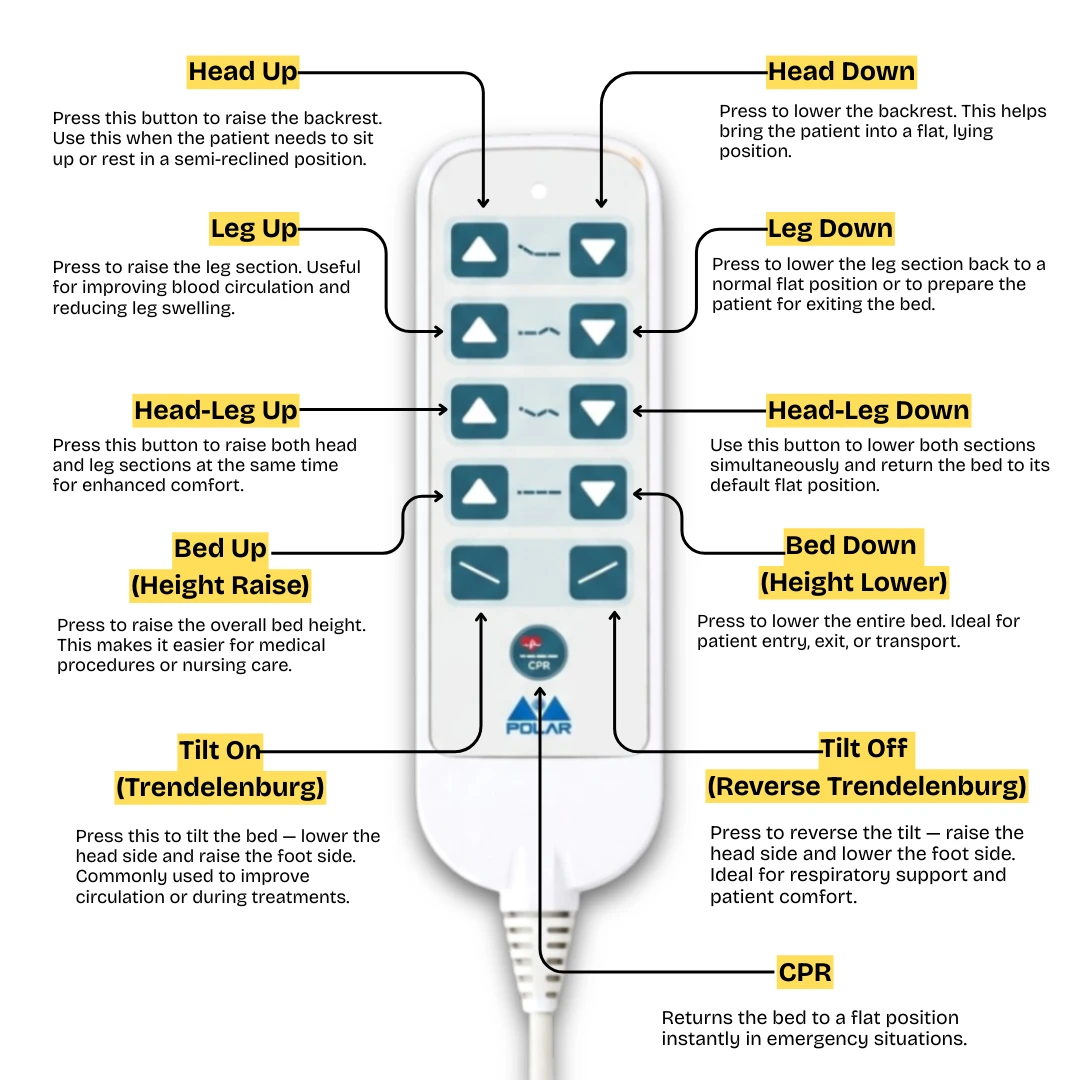

The 5 Function Linear Actuator System with Dual Control (Patient Remote + Nurse Panel) is designed for advanced hospital and ICU bed applications, providing precise and independent adjustment of the backrest, leg rest, bed height, tilt, and Trendelenburg/reverse Trendelenburg positions. This system features dual control access, allowing both patients and healthcare professionals to operate bed adjustments conveniently through a patient handset remote and a nurse control panel. Powered by a 24V DC supply with a 60 W actuator rating, the system delivers smooth, stable, and low-noise performance (≤ 54 dB) to enhance patient comfort while ensuring efficient operation for medical staff. Built-in limit switches and overload protection provide additional safety and reliability, while the wired communication system ensures consistent control. With a 20% duty cycle and dependable operation within 0°C to 50°C temperature and 10% to 90% non-condensing humidity, the system is suitable for demanding healthcare environments.Variant 1 features a 100 mm stroke length with a full-length range of 100 mm to 288 mm, supporting a maximum load of 6000 N at a speed of 4 mm/s. It is ideal for standard hospital and ICU beds requiring reliable lifting capacity and precise positioning.Variant 2 provides an extended 150 mm stroke length with a full-length range of 150 mm to 325 mm, maintaining a 6000 N load capacity at 4 mm/s. This variant offers greater flexibility in bed positioning and improved adjustment range for enhanced patient comfort.
Variant 3 (CPR Compatible) is optimized for rapid bed adjustments during emergency situations, featuring a 150 mm stroke length with a full-length range of 150 mm to 349 mm. Operating at a higher speed of 8 mm/s with a 4000 N load capacity, it enables quick repositioning and supports CPR-compatible configurations for critical care environments.
Specifications of 5 Function Linear Actuator System with Patient Remote & Nurse Panel
| Actuator Type | Stroke :- 100mm / Load :- 6000N / Speed :- 4mm/s / Full length 100mm - 288mm , Stroke :- 150mm / Load :- 6000N / Speed :- 4mm/s / Full length 150mm - 325mm , Stroke :- 150mm / Load :- 4000N / Speed :- 8mm/s / Full length 150mm - 349mm (CPR Compatible) |
