5 Function Hospital Bed Actuator System with Patient Remote
Offer end in:

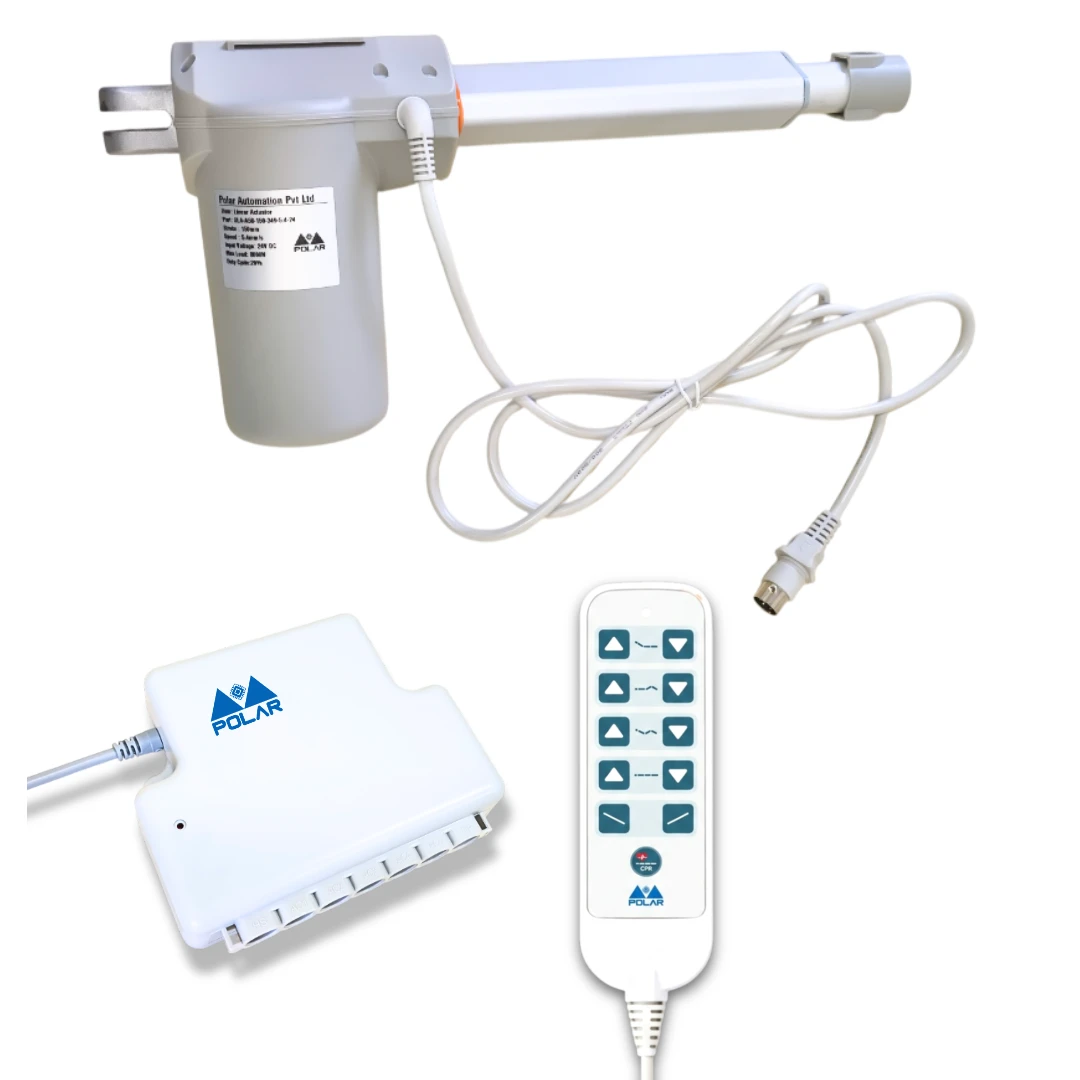

This 5-function hospital-bed linear actuator system is available in three variants (100 mm, 150 mm heavy-duty, and 150 mm high-speed CPR compatible), offering independent control of all major bed adjustments. Operating on 24V DC with a 60 W rating, the system ensures smooth, quiet, and precise motion with built-in safety protections. With load capacities up to 6000 N and speeds up to 8 mm/s, it provides reliable, hospital-grade performance for general, ICU, and emergency care bed applications.
Actuator Type
Out Of Stock
Clear
Description

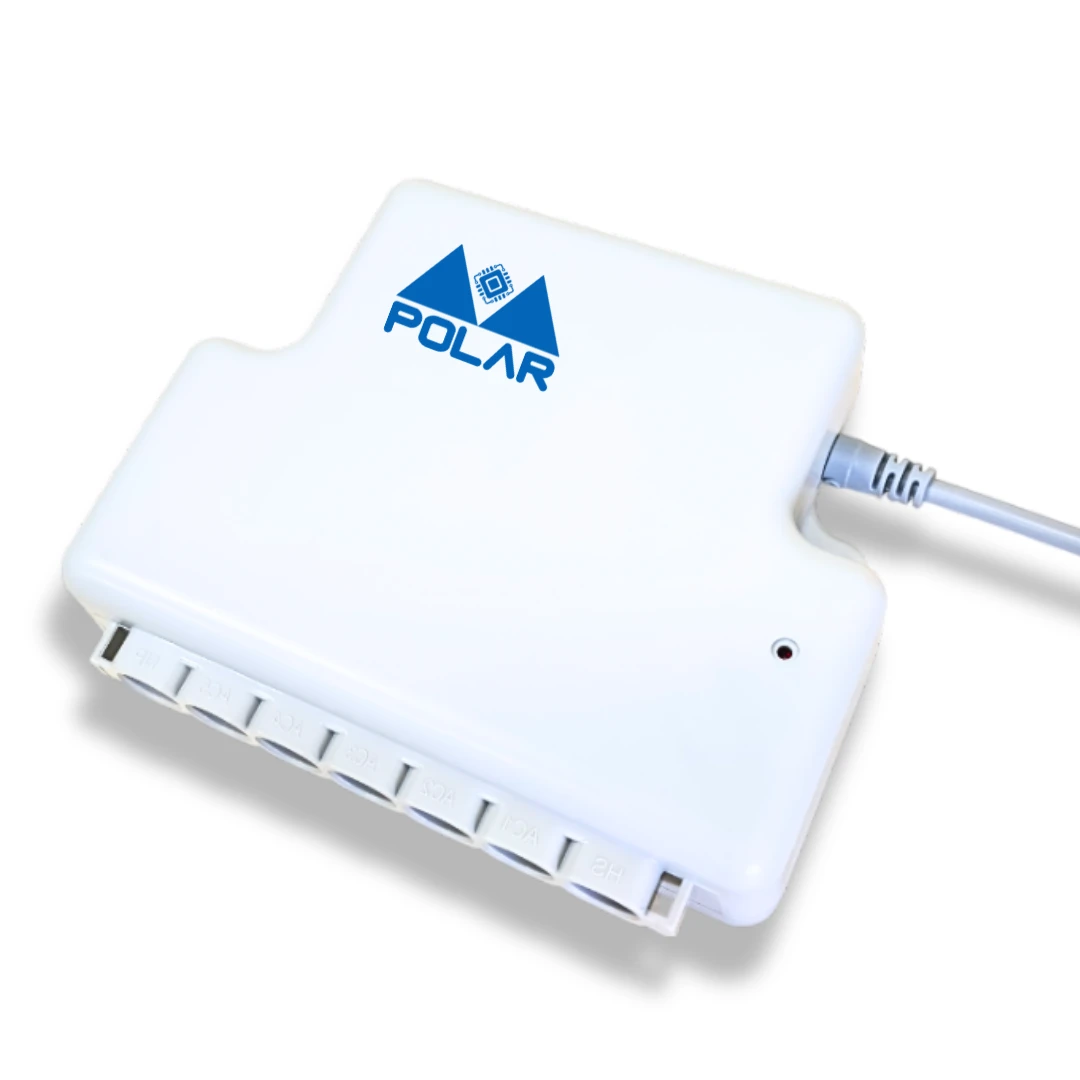

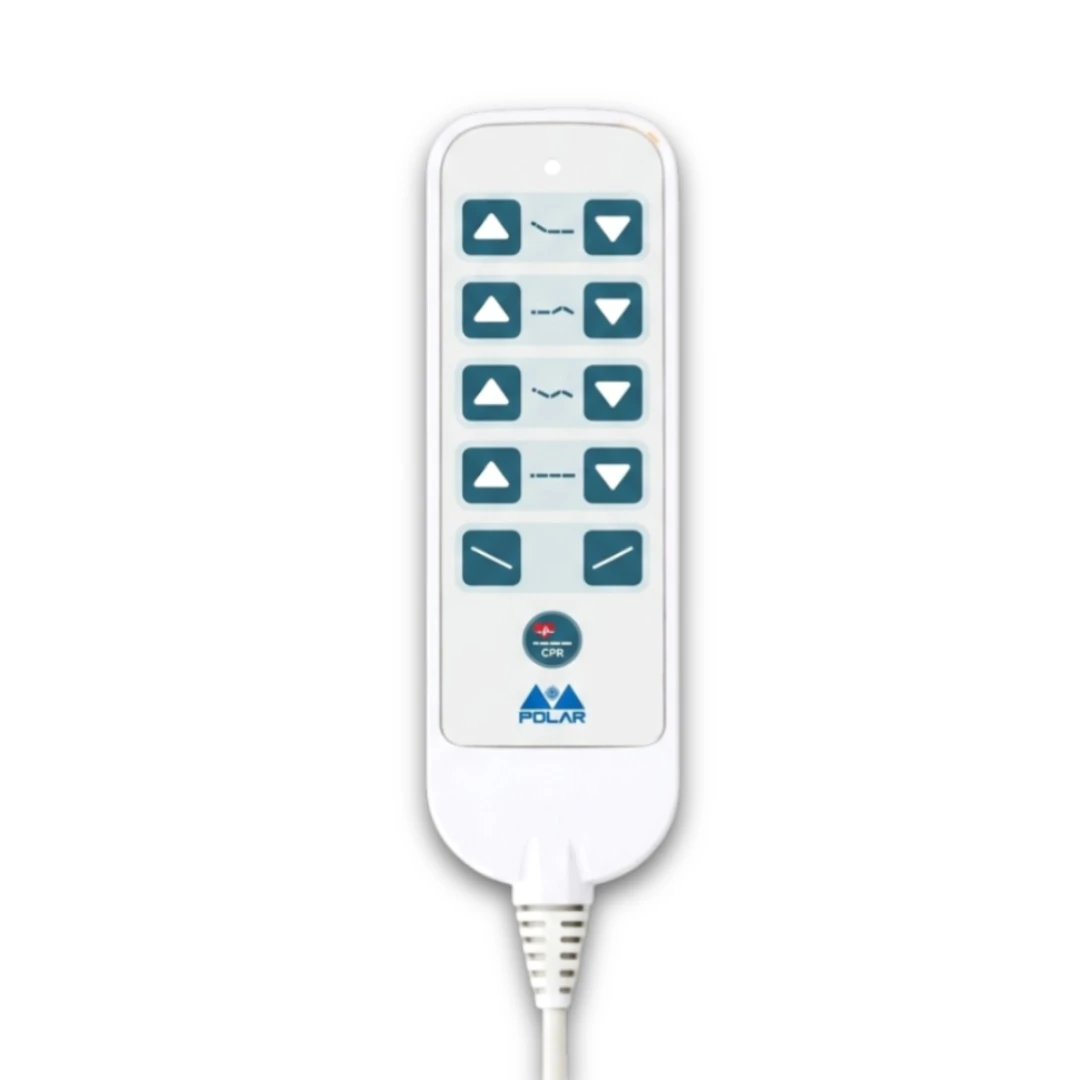

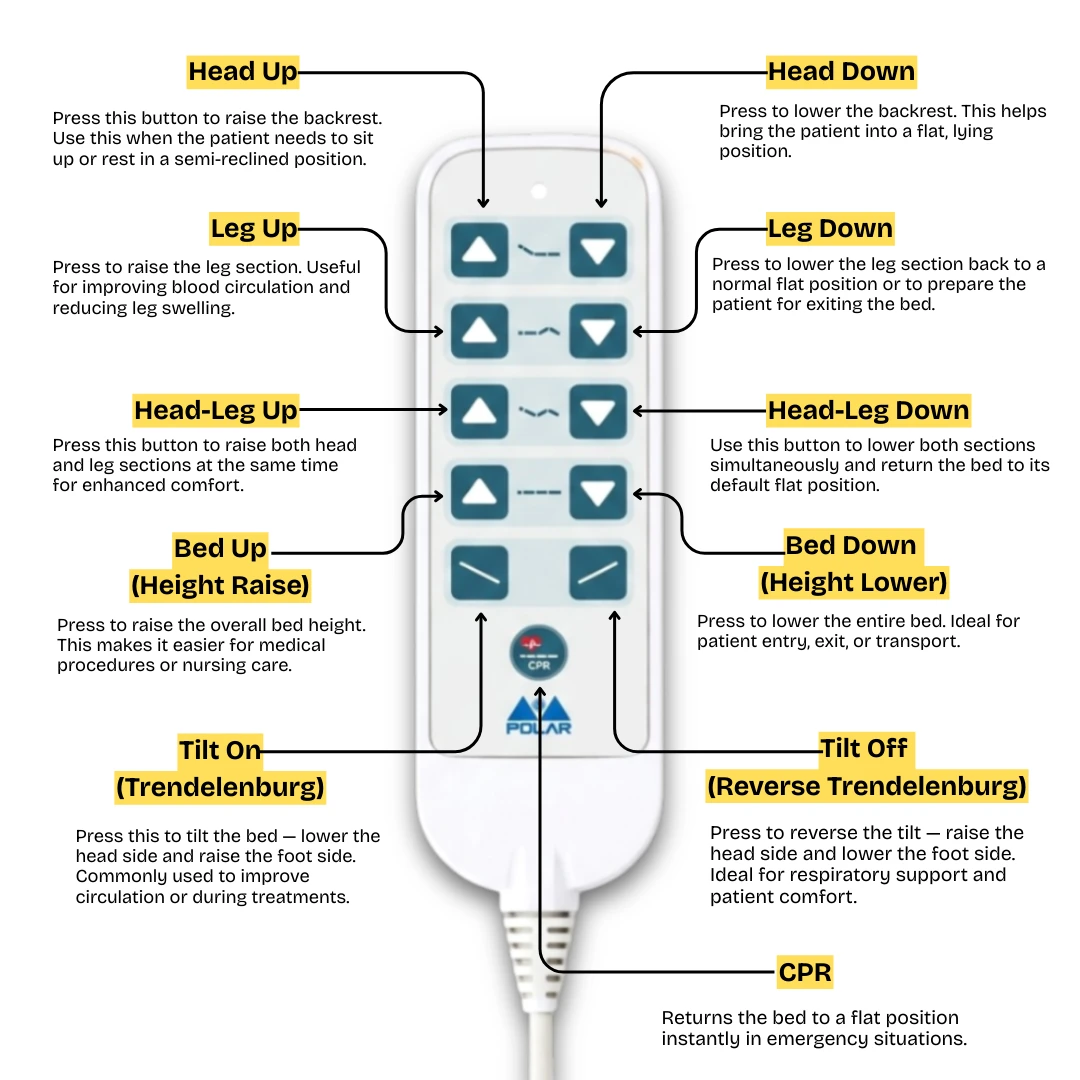

This 5-function hospital-bed linear actuator system is engineered for advanced hospital, ICU, and home-care applications, delivering precise and independent control of backrest, leg rest, bed height adjustment, tilt, and Trendelenburg/reverse Trendelenburg positions. Designed for smooth, stable, and low-noise performance (≤ 54 dB), the system enhances patient comfort while supporting safe and efficient caregiver operation. Powered by 24V DC with a 60 W actuator rating, all variants feature wired manual control via a patient handset remote, along with a control box and integrated safety protections including built-in limit switches and overload protection. With a 20% duty cycle and reliable operation across 0°C to 50°C and 10% to 90% non-condensing humidity, the system ensures dependable hospital-grade performance.

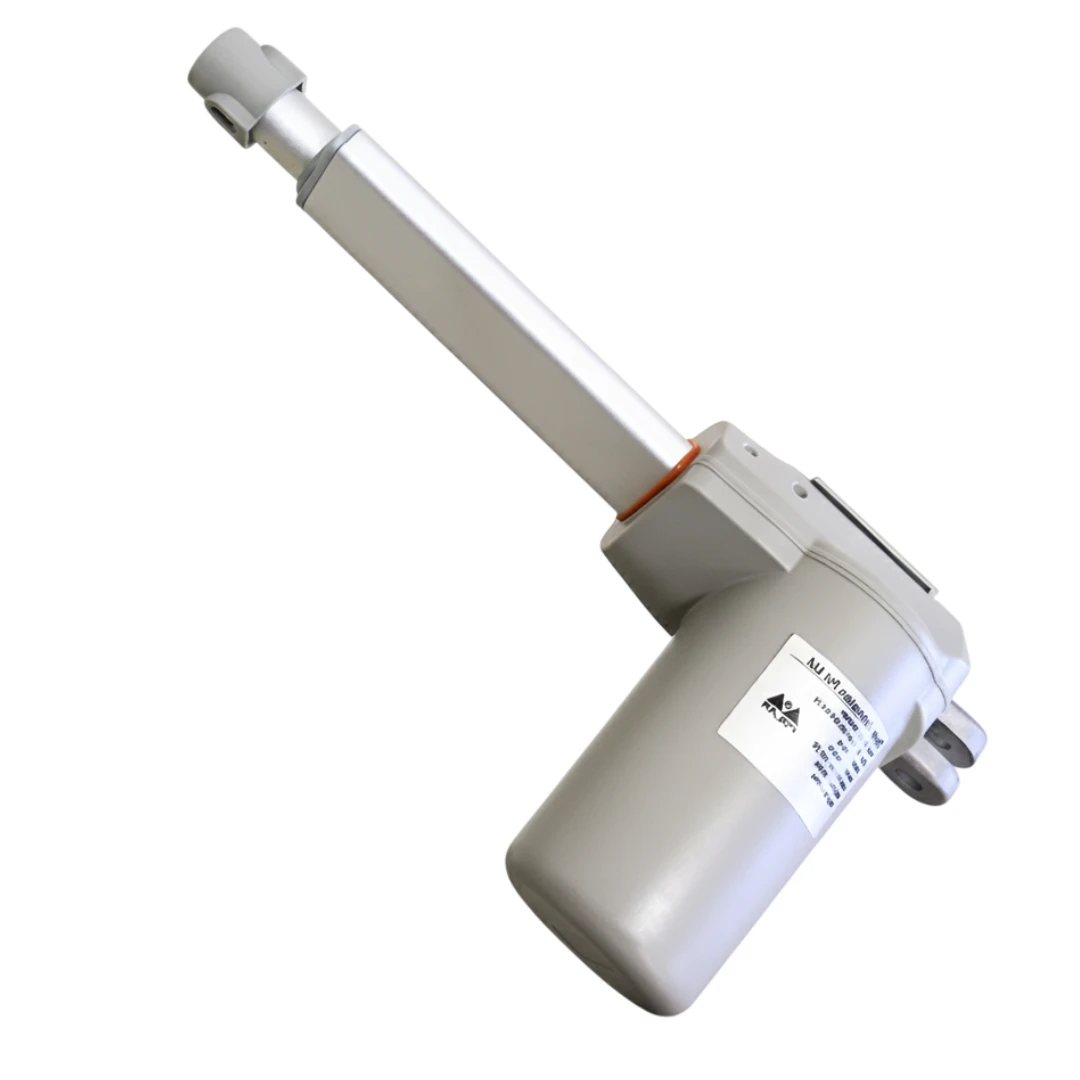

Variant 1 offers a 100 mm stroke length with a full-length range of 100 mm to 288 mm, supporting a maximum load of 6000 N at 4 mm/s. It is ideal for standard five-function hospital beds requiring precise positioning and strong lifting capacity.
Variant 2 provides an extended 150 mm stroke length with a full-length range of 150 mm to 325 mm, maintaining a 6000 N load capacity at 4 mm/s. This variant enables greater vertical movement and enhanced flexibility for advanced adjustable bed systems and ICU applications.
Variant 3 (CPR Compatible) features a 150 mm stroke length with a full-length range of 150 mm to 349 mm, optimized for faster adjustment at 8 mm/s with a load capacity of 4000 N. Designed for emergency and critical care environments, it allows rapid bed positioning and supports CPR-compatible configurations for quick response situations.
Specifications of 5 Function Hospital Bed Actuator System with Patient Remote
| Shipping Weight | 12 kg |
| Actuator Type | Stroke :- 100mm / Load :- 6000N / Speed :- 4mm/s / Full length 100mm - 288mm , Stroke :- 150mm / Load :- 6000N / Speed :- 4mm/s / Full length 150mm - 325mm , Stroke :- 150mm / Load :- 4000N / Speed :- 8mm/s / Full length 150mm - 349mm (CPR Compatible) |
