5 Function Hospital Bed Actuator System with Nurse Panel
Offer end in:

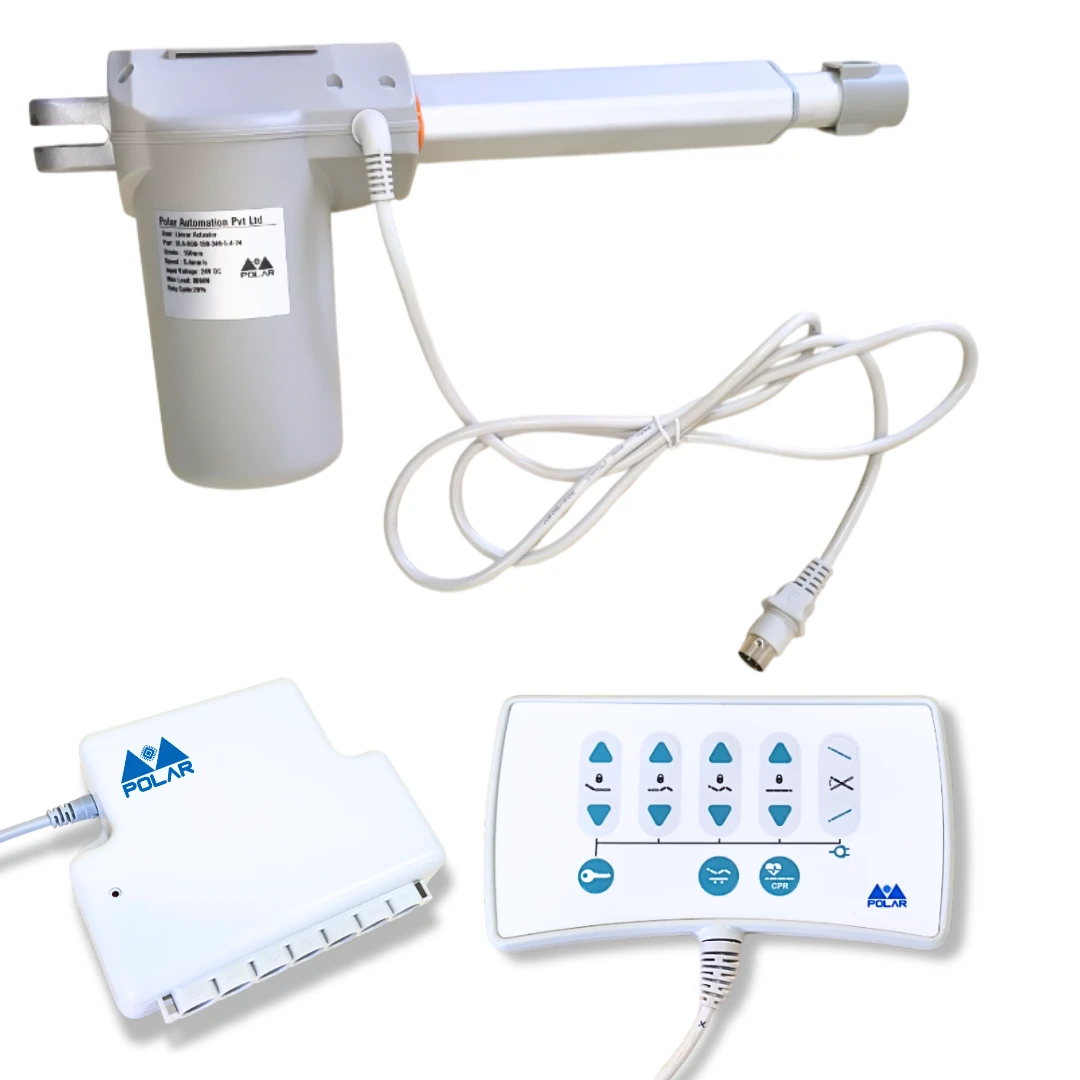

The 5 Function Linear Actuator System with Nurse Panel is available in three variants—100 mm standard, 150 mm extended heavy-duty, and 150 mm high-speed CPR compatible—offering centralized nurse control for efficient bed management. Operating on 24V DC with a 60 W rating, the system delivers smooth, quiet, and reliable motion with load capacities up to 6000 N and speeds up to 8 mm/s. Designed for ICU and hospital-grade beds, it ensures safe, precise, and professional patient positioning in both routine and emergency care environments.
Actuator Type
Out Of Stock
Clear
Description

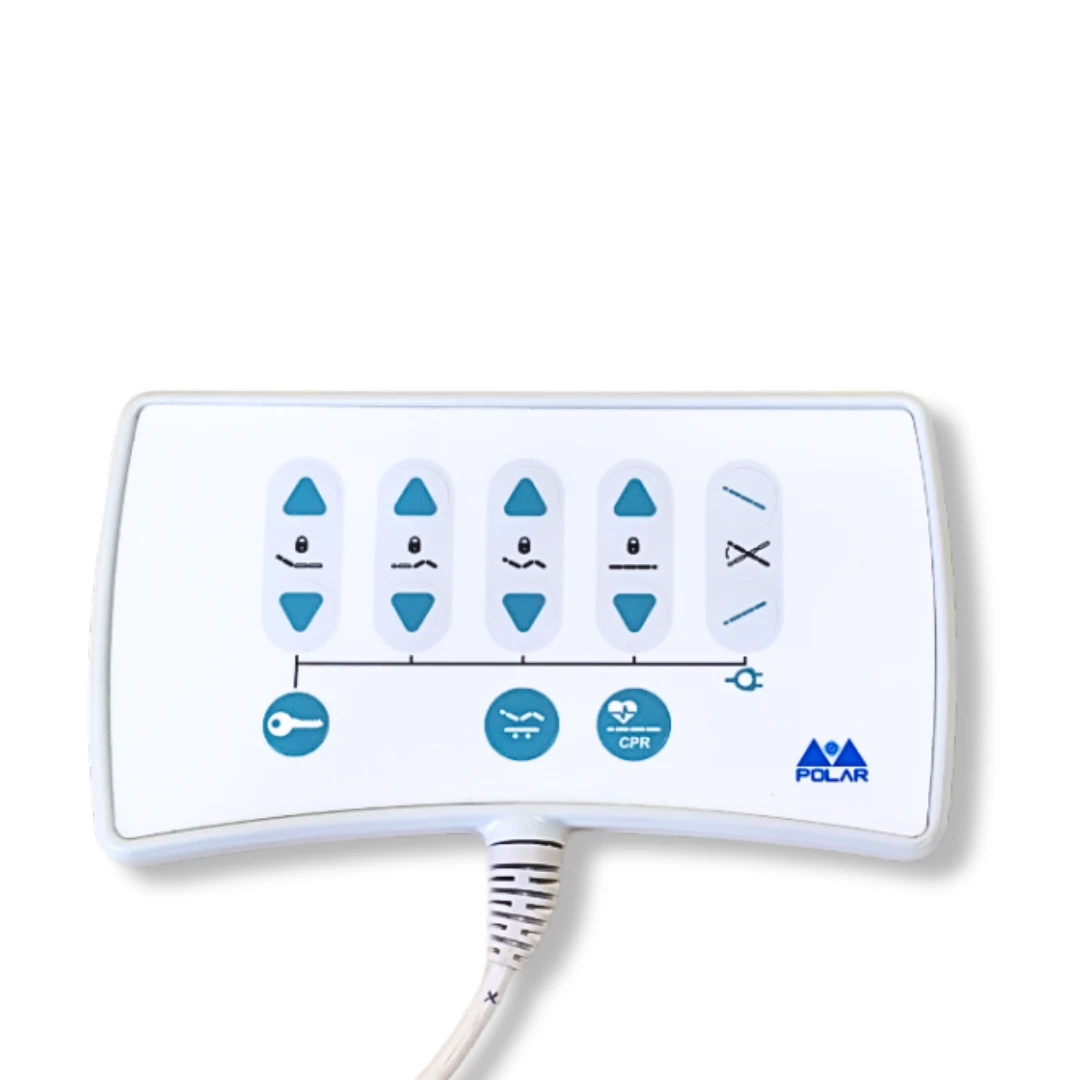

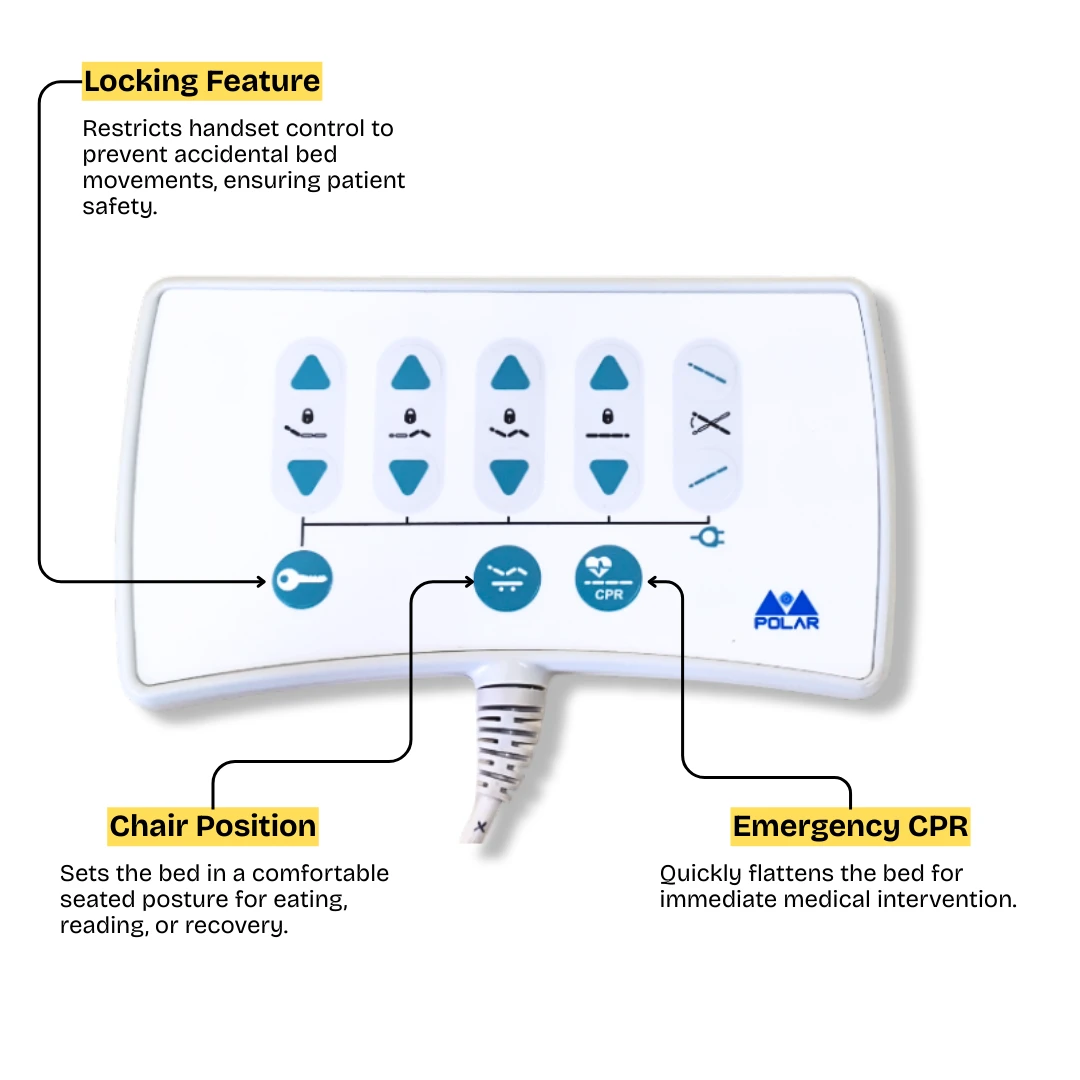

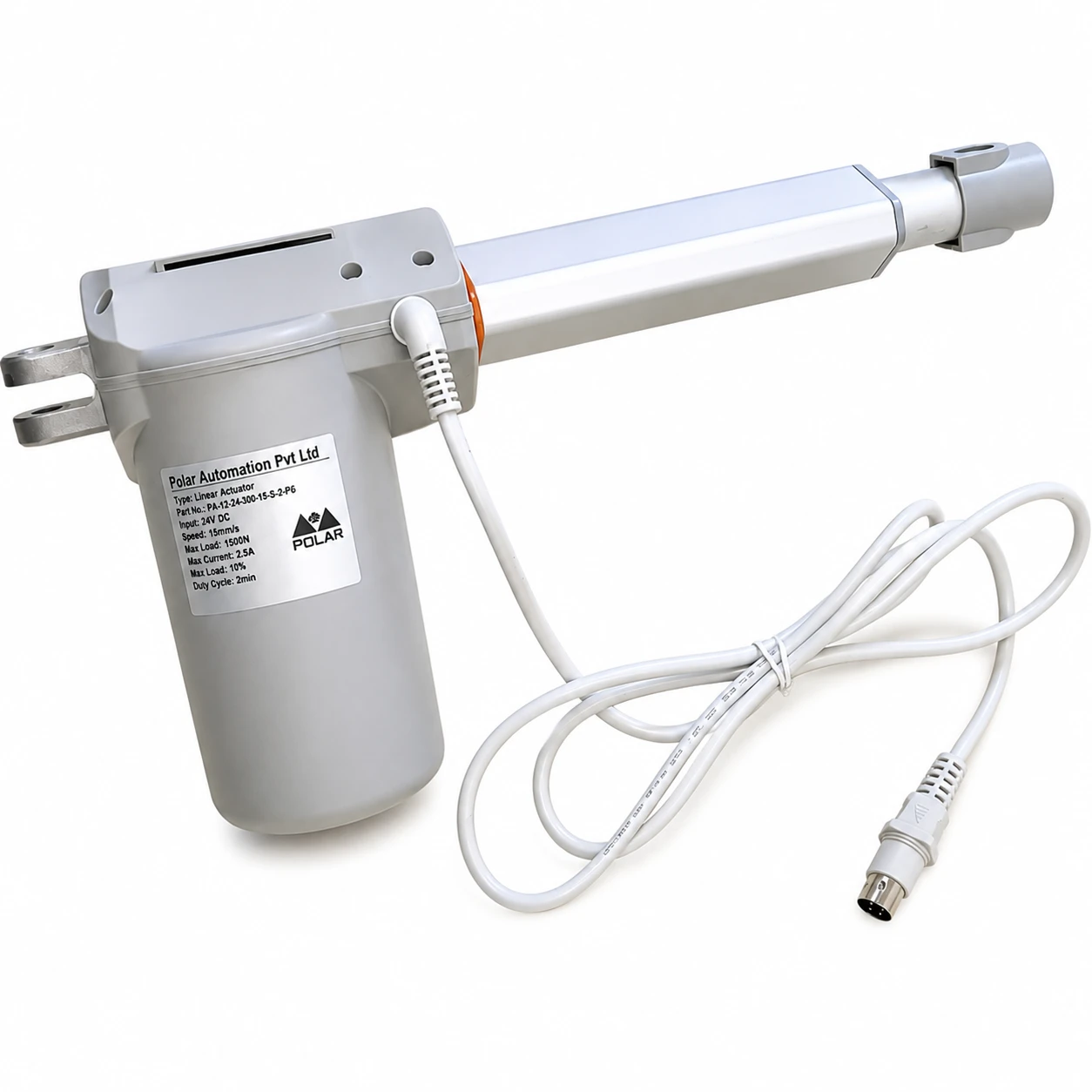

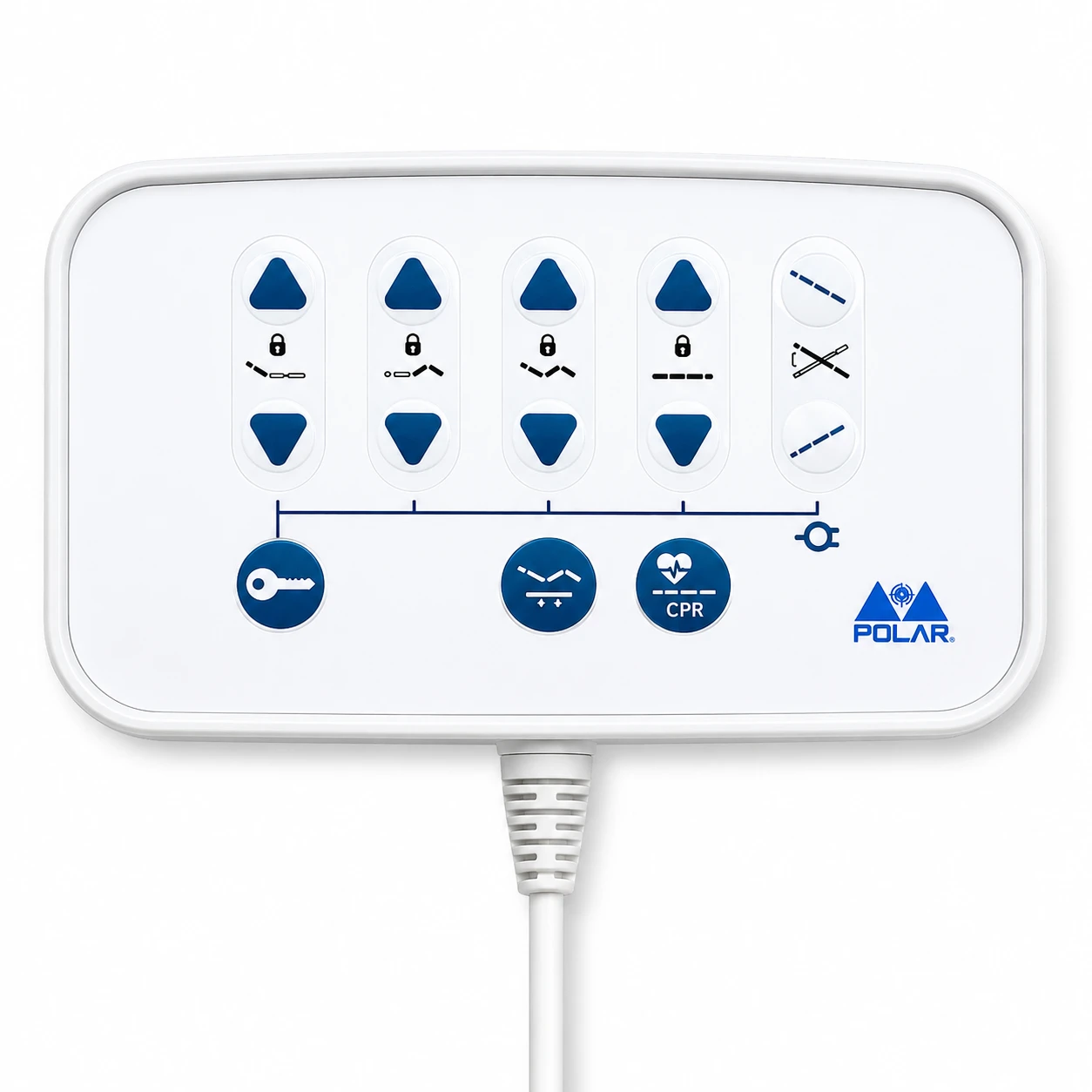

The 5 Function Linear Actuator System with Nurse Panel is engineered for advanced hospital and ICU bed applications, enabling precise and independent adjustment of backrest, leg rest, bed height, tilt, and Trendelenburg/reverse Trendelenburg positions. Designed for smooth, stable, and low-noise operation (≤ 54 dB), the system enhances patient comfort while providing healthcare professionals with centralized and secure control through an integrated nurse panel. Powered by 24V DC with a 60 W actuator rating, the system includes built-in limit switches and overload protection to ensure safe and reliable performance in demanding medical environments. With a 20% duty cycle and dependable operation within 0°C to 50°C and 10% to 90% non-condensing humidity, it meets hospital-grade performance standards.Variant 1 features a 100 mm stroke length with a full-length range of 100 mm to 288 mm, supporting a maximum load of 6000 N at a speed of 4 mm/s. It is ideal for standard five-function hospital beds requiring strong lifting capacity and precise positioning control.Variant 2 offers an extended 150 mm stroke length with a full-length range of 150 mm to 325 mm, maintaining a 6000 N load capacity at 4 mm/s. This configuration provides greater vertical travel and enhanced flexibility for professional healthcare settings.
Variant 3 (CPR Compatible) is optimized for rapid emergency positioning, featuring a 150 mm stroke length with a full-length range of 150 mm to 349 mm. Operating at a higher speed of 8 mm/s with a load capacity of 4000 N, this variant enables faster bed adjustments during critical care and CPR situations while maintaining smooth and controlled motion.
Specifications of 5 Function Hospital Bed Actuator System with Nurse Panel
| Shipping Weight | 12 kg |
| Shipping Dimensions | 43 × 56 × 26 cm |
| Actuator Type | Stroke :- 100mm / Load :- 6000N / Speed :- 4mm/s / Full length 100mm - 288mm , Stroke :- 150mm / Load :- 6000N / Speed :- 4mm/s / Full length 150mm - 325mm , Stroke :- 150mm / Load :- 4000N / Speed :- 8mm/s / Full length 150mm - 349mm (CPR Compatible) |
