3 CHANNEL ECG MACHINE

Share on:

Offer end in:

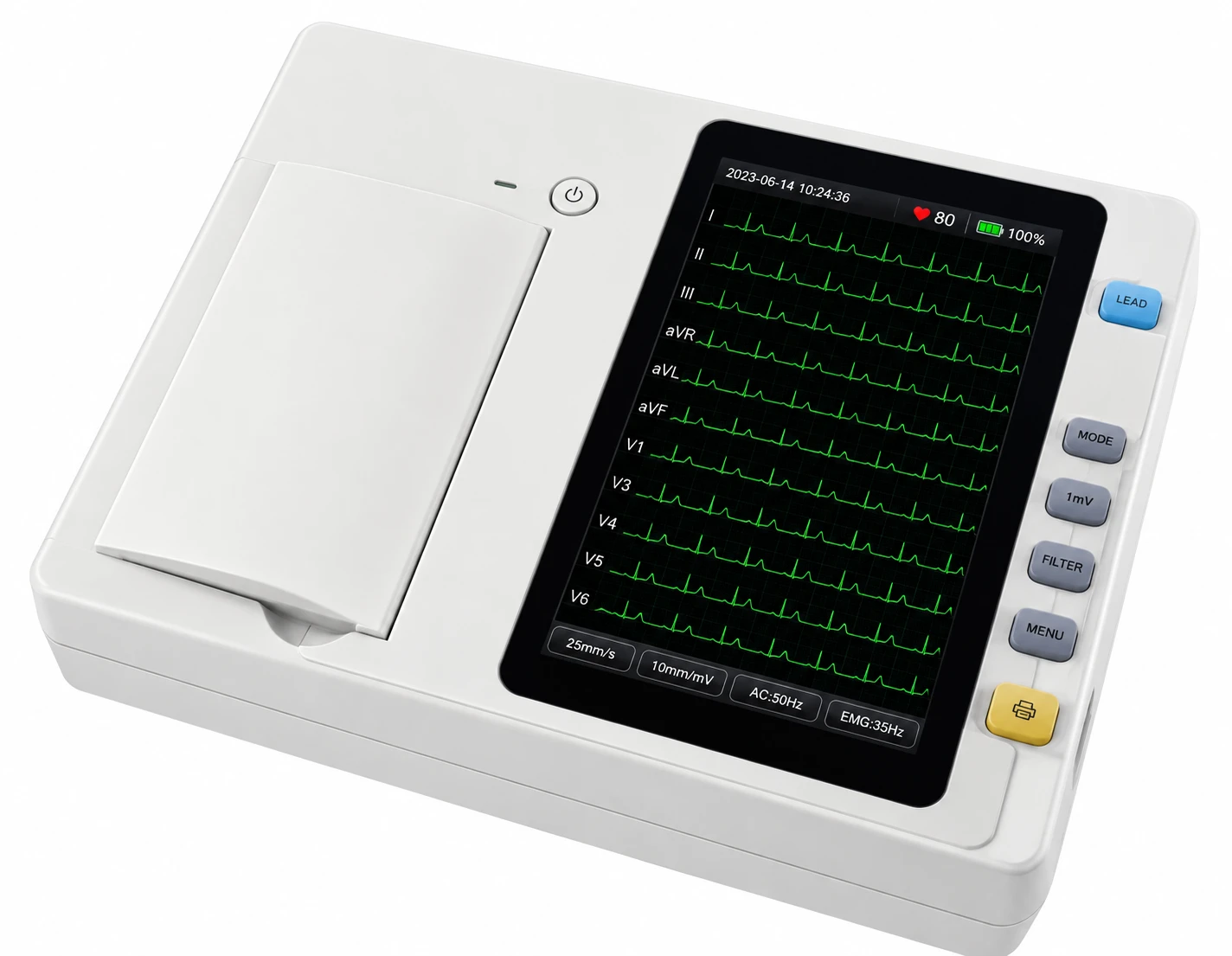

Pulse Vital ZEC3 3 Channel ECG Machine is designed for recording and analyzing cardiac electrical activity with detailed ECG waveform visualization. It features a 7-inch high-resolution color touchscreen and supports simultaneous acquisition and display of 12-lead ECG signals. Automatic ECG measurement and interpretation functions help simplify cardiac assessment. Its compact design, rechargeable lithium-ion battery, and expandable memory make it suitable for clinical and diagnostic environments.

In Stock

Description Specification

Pulse Vital ZEC3 3 Channel ECG Machine is a compact electrocardiography device designed to record, display, and analyze cardiac electrical activity for clinical assessment. It features a 7-inch high-resolution color touchscreen for clear waveform visualization and convenient operation. The machine supports simultaneous acquisition and display of 12-lead ECG signals, along with automatic ECG measurement and interpretation functions. Its digital filtering system helps reduce baseline drift, AC interference, and electromyographic (EMG) noise for clearer ECG recordings. The device includes a standard 12-lead patient cable and a floating input protection circuit designed to protect against defibrillator effects. It supports automatic and manual recording modes, as well as selectable rhythm lead monitoring. EMG filters ranging from 25 Hz to 150 Hz, DFT filters of 0.05 Hz and 0.15 Hz, and a common-mode rejection ratio of 100 dB support signal processing. USB flash drives and microSD cards can be used to expand storage, while software upgrades are supported through USB or SD card. With a built-in rechargeable lithium-ion battery, dimensions of 260 × 210 × 45 mm, and a weight of approximately 2.6 kg, it offers convenient portability for clinical use.

Specifications of 3 CHANNEL ECG MACHINE

Shipping Weight	2.6 kg
Shipping Dimensions	26.00 × 21.00 × 4.50 cm
Display	7-inch high-resolution color touch screen
ECG Leads	12-lead simultaneous acquisition and display
ECG Measurement	Automatic measurement and interpretation function
Digital Filters	Complete digital filters, resisting baseline drift, AC and EMG interference
Design	Compact and lightweight
Memory Expansion	Supports USB flash disk and micro SD card to extend memory
