12 CHANNEL ECG MACHINE

Share on:

Offer end in:

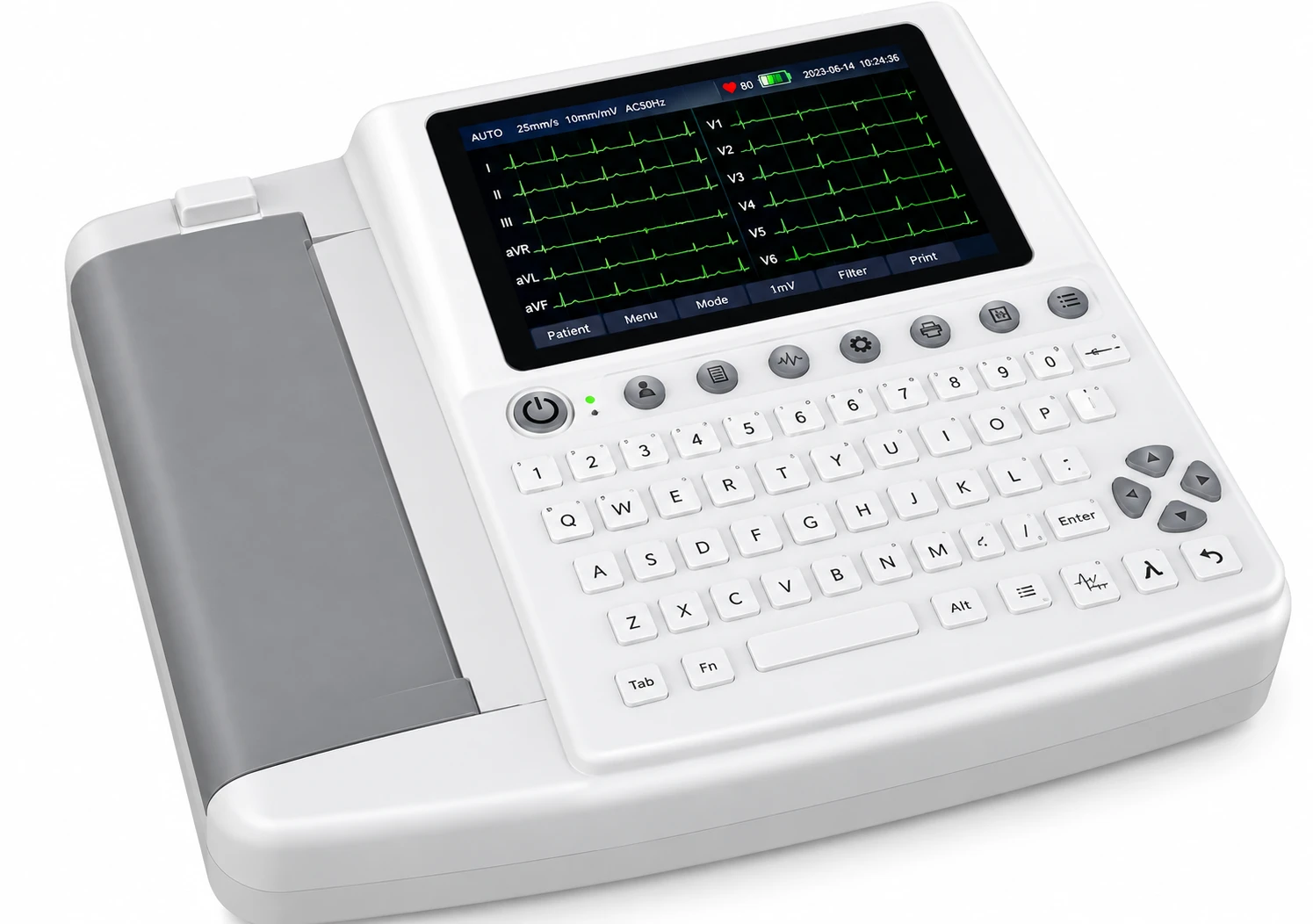

Pulse Vital ZEC12 12 Channel ECG Machine is designed for comprehensive cardiac assessment through simultaneous acquisition and display of 12-lead ECG signals. It features a 7-inch high-resolution color touchscreen and a full alphanumeric keyboard for convenient operation. Automatic ECG measurement, interpretation, and internal storage for up to 1,000 cases support efficient clinical review. Its rechargeable lithium battery and USB connectivity provide flexibility for portable use and ECG data management.

In Stock

Description Specification

Pulse Vital ZEC12 12 Channel ECG Machine is an advanced electrocardiography device designed to record, display, and analyze cardiac electrical activity for clinical assessment. It features a 7-inch high-resolution color touchscreen and a full alphanumeric keyboard with shortcut keys for efficient operation. The machine supports simultaneous acquisition and display of 12-lead ECG signals, along with automatic ECG measurement and interpretation functions. Its internal memory can store up to 1,000 cases, enabling convenient review and statistical analysis of recorded data. The device operates with a sampling rate of 1,000 Hz, a 24-bit A/D converter, and a frequency response of 0.05–160 Hz at −3 dB. It supports manual, automatic, and rhythm recording modes, with selectable AC, EMG, and DFT filters to help reduce electrical and muscular interference. ECG data can be transferred to a computer via USB, while reports can be saved and reviewed using compatible ECG playback software. The built-in rechargeable high-capacity lithium battery supports portable operation, and the unit measures 430 × 200 × 420 mm with an approximate weight of 2.6 kg.

Specifications of 12 CHANNEL ECG MACHINE

Shipping Weight	2.6 kg
Shipping Dimensions	43.00 × 20.00 × 42.00 cm
Display	7-inch high-resolution color touch screen
Keyboard	Full alphanumeric keyboard with shortcut keys, efficient in operation
ECG Leads	Simultaneous 12-lead ECG acquisition and display
Internal Storage	Up to 1000 cases, convenient for case review and statistics
ECG Report Storage	ECG reports can be saved and opened on PC via ECG playback software
Sampling Rate	1000 Hz
Frequency Response	0.05–160 Hz (-3 dB)
