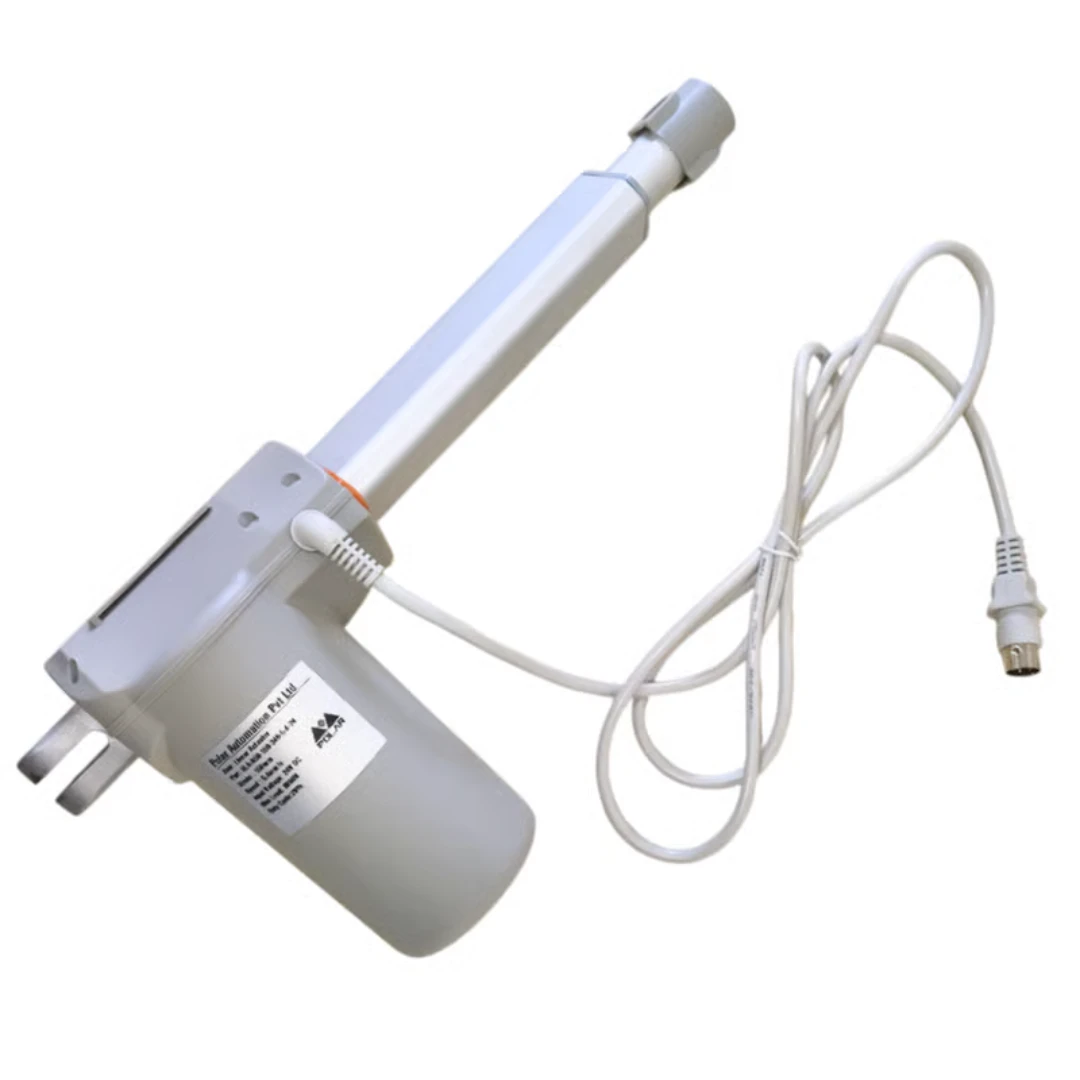

1 Function Electric Linear Actuator

Share on:

This hospital-bed linear actuator provides smooth, quiet, and reliable single-function bed adjustment with an extended 150 mm stroke for improved positioning. Powered by 24V DC, it supports heavy loads up to 6000 N and includes built-in safety features like limit switches and overload protection. With simple wired manual control and hospital-grade performance, it is ideal for both hospital and home-care bed applications.
In Stock 25 items remaining

Description

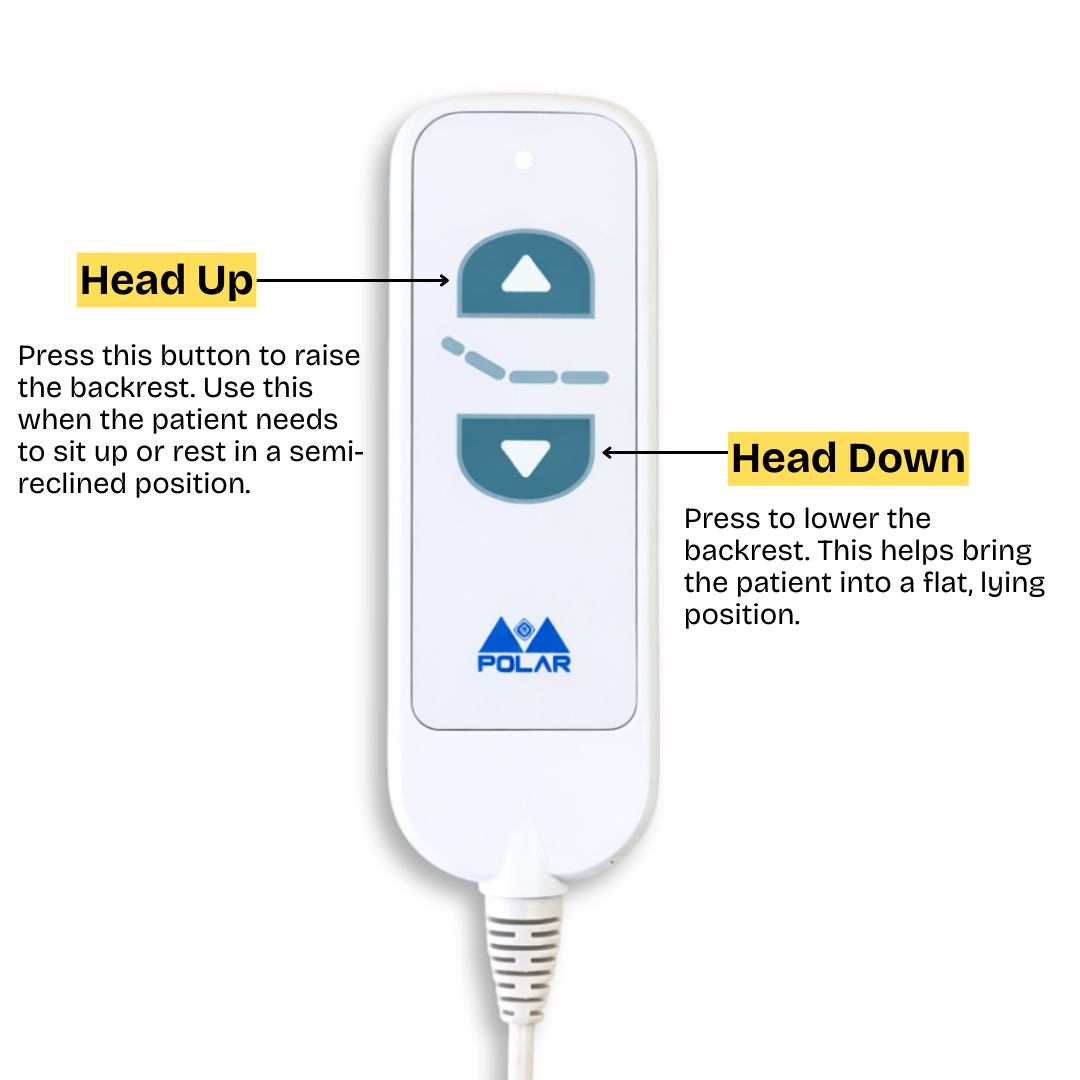

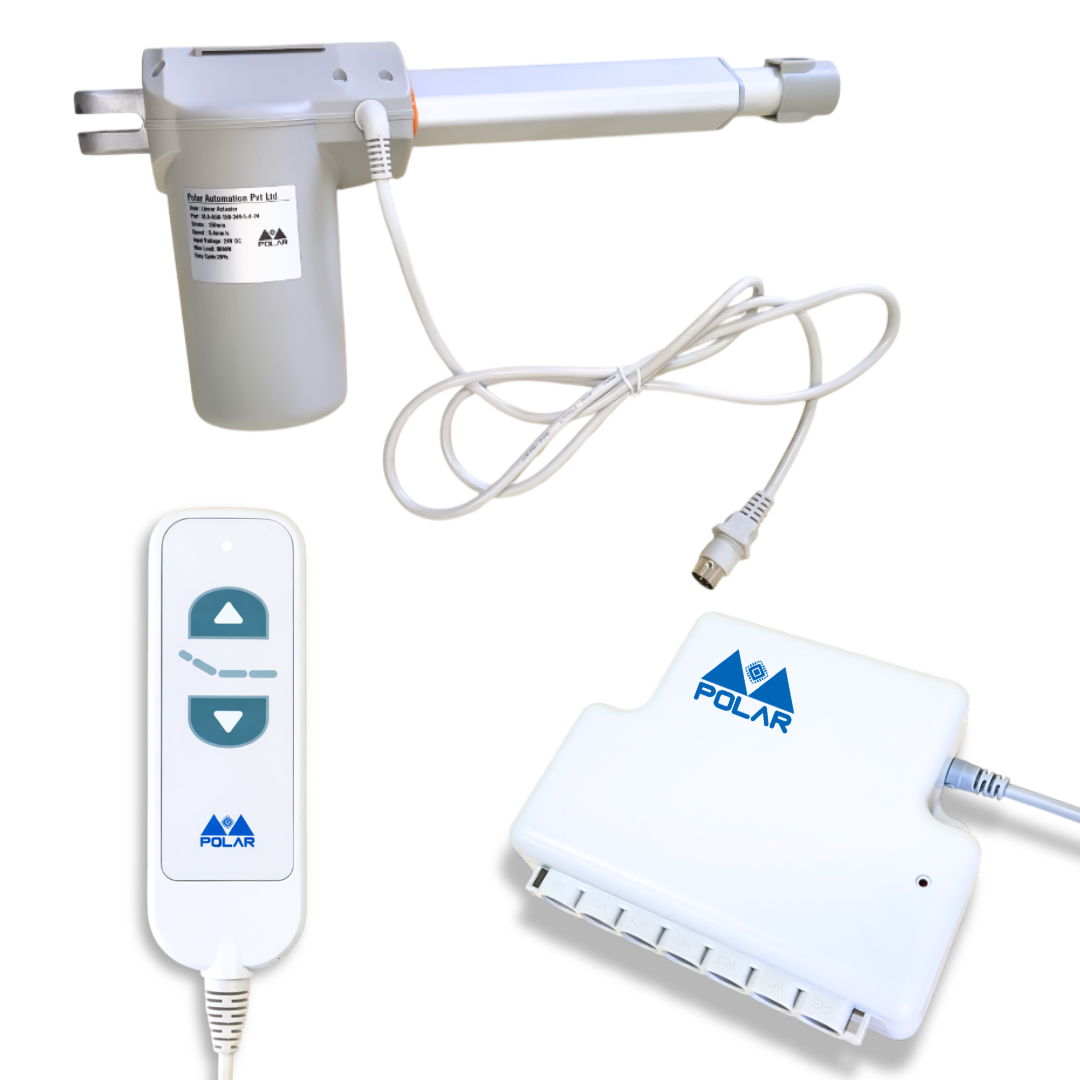

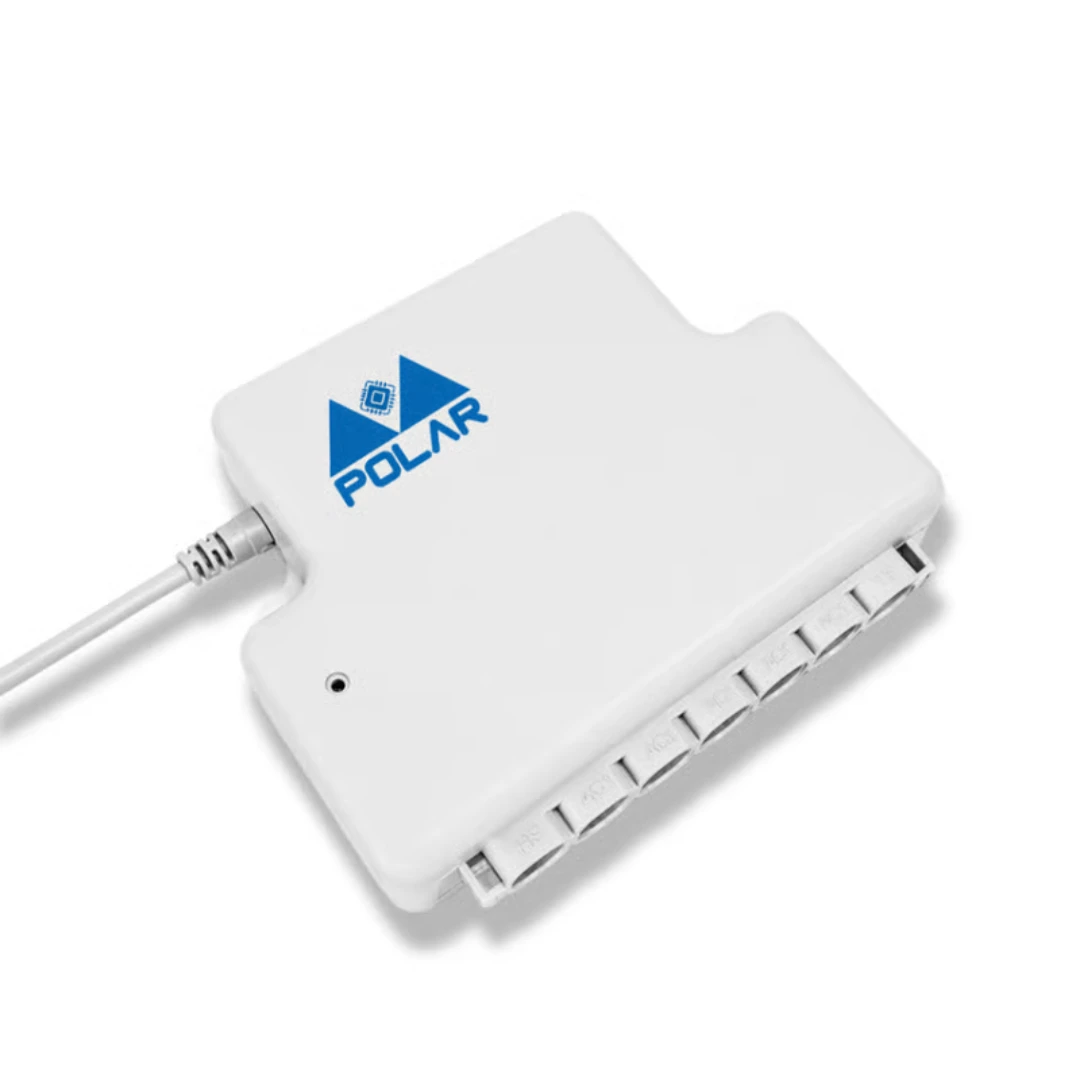

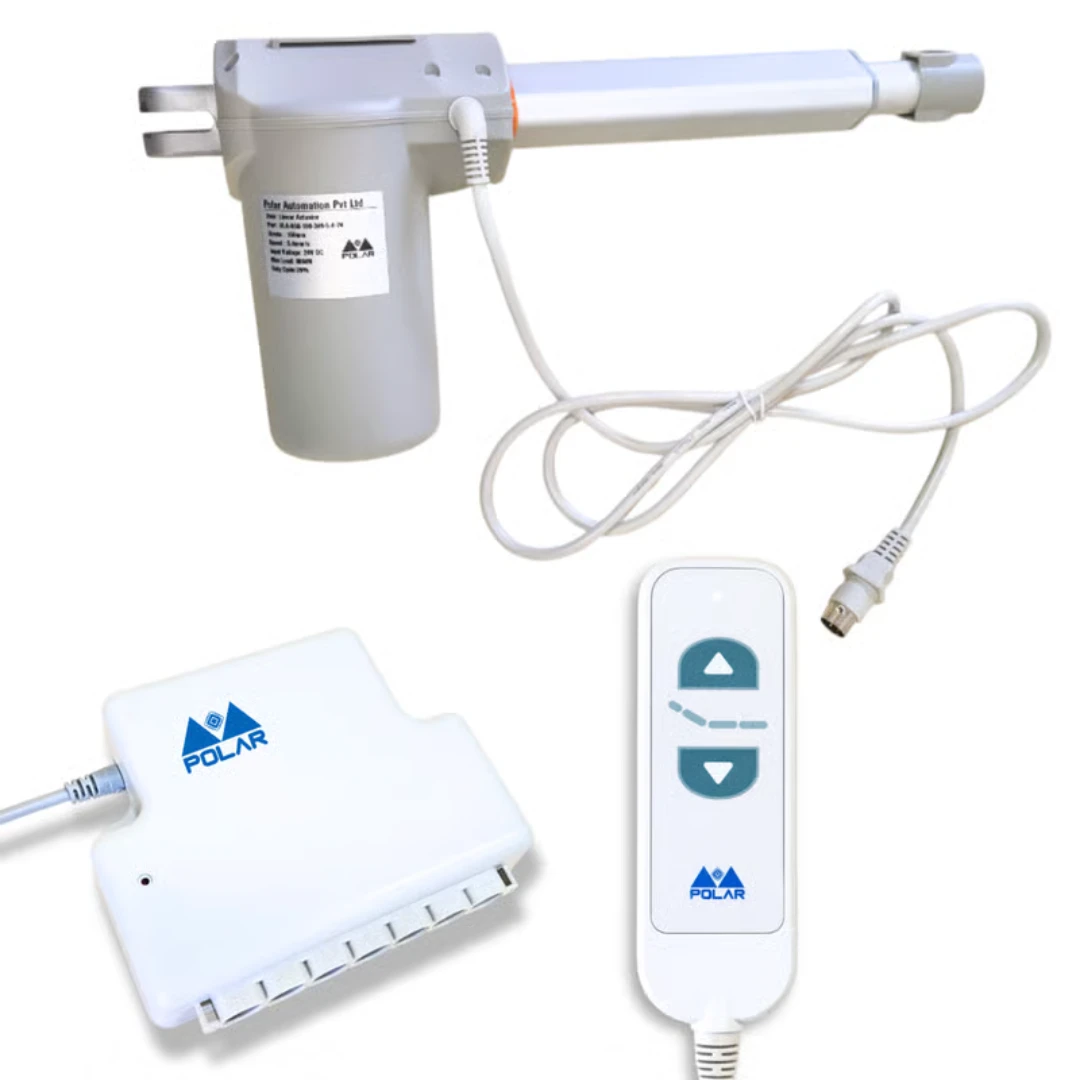

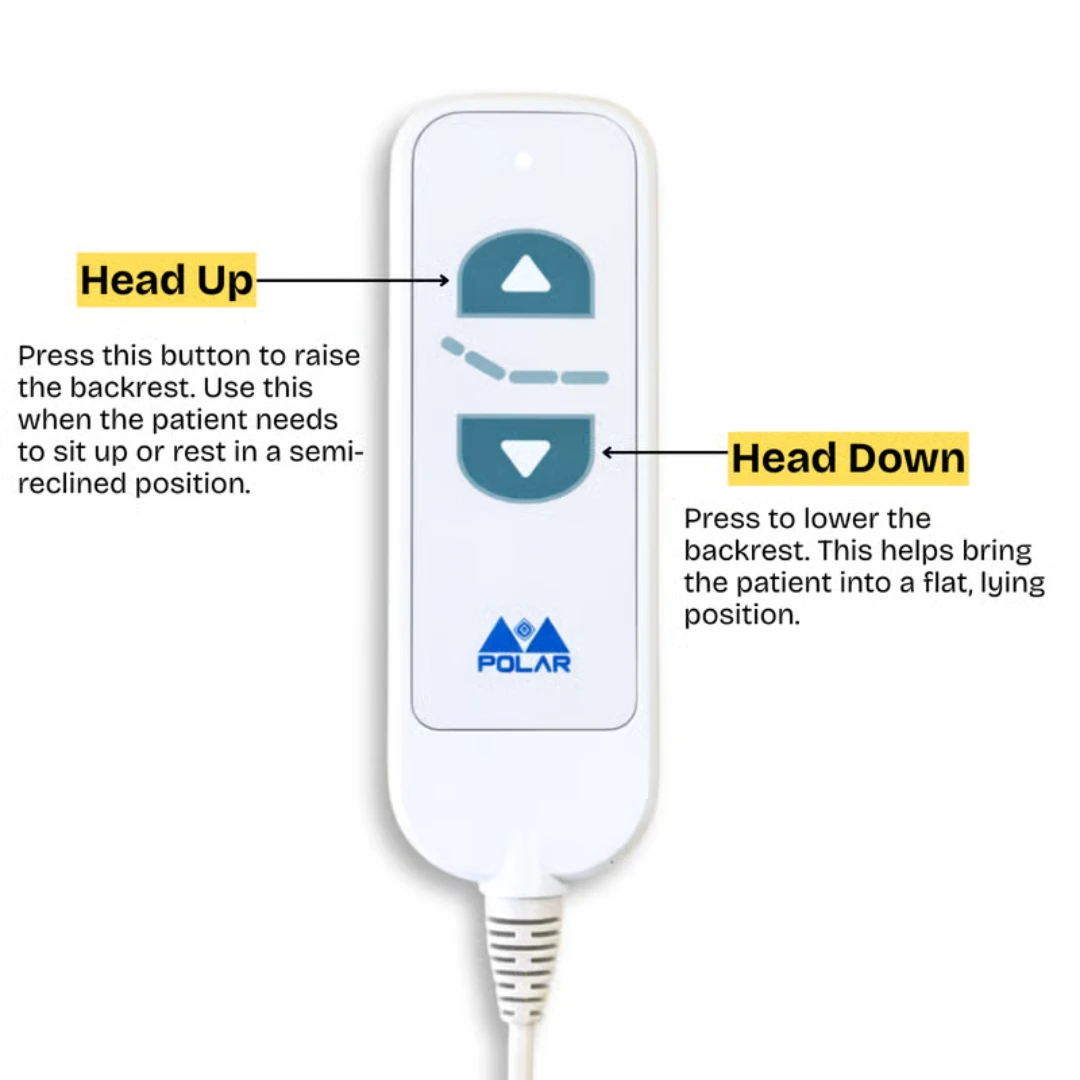

This 1-function hospital-bed linear actuator is designed to support single bed adjustment applications such as back-rest positioning, offering an extended stroke length that allows a wider and more comfortable range of movement. Powered by a 24V DC supply with a 60 W rating, it delivers smooth, stable, and quiet operation at a speed of 4 mm/s, with a noise level of ≤ 54 dB, making it suitable for both hospital and home-care environments. With a stroke length of 150 mm and an adjustable full length ranging from 150 mm to 325 mm, the actuator provides reliable performance while handling loads of up to 6000 N. It features built-in limit switches and overload protection to ensure safe and dependable operation under demanding conditions. Designed for manual control with wired communication, the actuator includes a simple wired control unit and handset for easy use. It operates efficiently within a temperature range of 0°C to 50°C and humidity levels of 10% to 90% (non-condensing), with a 20% duty cycle, making it a robust and practical solution for hospital-grade bed systems.

Specifications of 1 Function Electric Linear Actuator

Shipping Weight 5 kg
Shipping Dimensions 260 × 560 × 260 cm
